| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Center | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Resistance | |
| Technology | |
| Type | |
| Values | |
| Width |
The EMIF02-SPK02F2 from STMicroelectronics is a 3rd order low pass RC (Pi) EMI filter with a typical cutoff frequency of 20MHz. It provides 45dB of attenuation at 900MHz, making it suitable for suppressing high-frequency noise in mobile device data lines.

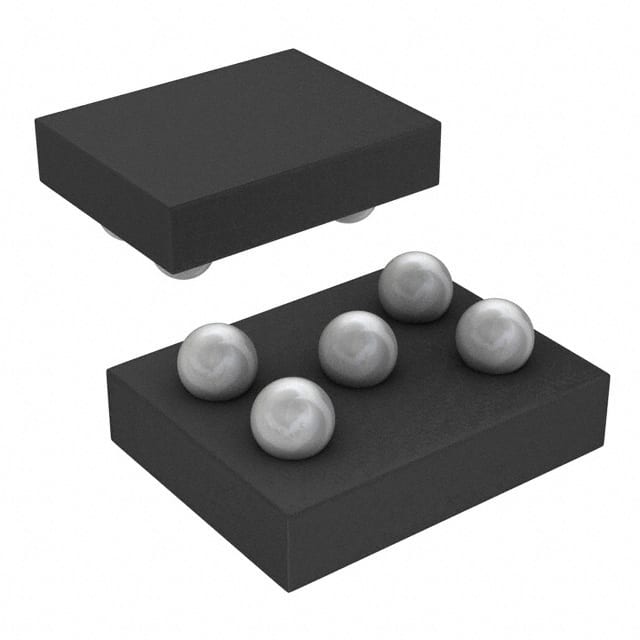

This filter integrates ESD protection and features two channels with component values of R = 800mΩ and C = 315pF per channel. The device is surface mounted and packaged in a compact 5-WFBGA or FCBGA package measuring 1.26mm x 0.89mm x 0.72mm.
Designed specifically for data line filtering in portable electronics, the EMIF02-SPK02F2 combines filtering and protection in a single small-footprint component.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.30 | $0.30 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.26 | $0.26 |
| 250+ | $0.24 | $0.24 |
| 500+ | $0.23 | $0.23 |
| 1,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical cutoff frequency is 20MHz.
It provides 45dB of attenuation at 900MHz.
Yes, it includes integrated ESD protection.
It is available in a 5-WFBGA or FCBGA surface mount package.
It has 2 channels.
