EMIF02-1003M6 The EMIF02-1003M6 is a 2nd order low pass RC (Pi) EMI filter with ESD protection, designed for data lines in mobile devices. It features 100Ω resistance, 30pF capacitance, and 26dB attenuation at 900MHz.
Mfr Part #:

EMIF02-1003M6

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The EMIF02-1003M6 is a 2nd order low pass RC (Pi) EMI filter with ESD protection, designed for data lines in mobile devices. It features 100Ω resistance, 30pF capacitance, and 26dB attenuation at 900MHz.
✓ Total Stock: 604,020 pcs
$ Price Range: $0.16 - $0.40

EMIF02-1003M6 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
571,020 pcs
On Request
571020 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMIF02-1003M6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Center
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Width
View Similar Products (0)

EMIF02-1003M6 Description

Short technical summary and product information.

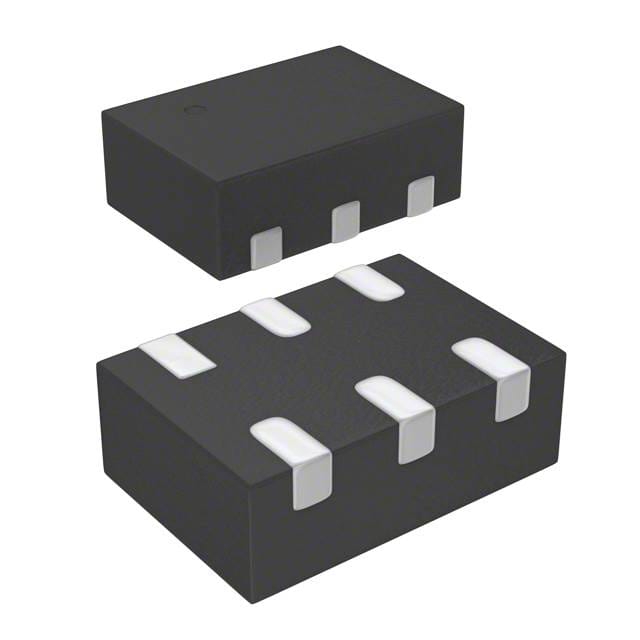

The EMIF02-1003M6 is a 2nd order low pass RC (Pi) EMI filter from STMicroelectronics, designed for suppressing electromagnetic interference on data lines. It integrates two channels in a compact 6-UFDFN surface mount package.



Key electrical specifications include a resistance of 100Ω and capacitance of 30pF per channel, providing a cutoff frequency of 900 MHz. The filter achieves 26 dB attenuation at 900 MHz and includes built-in ESD protection for enhanced robustness.



This filter is suitable for data lines in mobile devices and other portable electronics where space is limited. The operating temperature range is -40°C to 85°C, and the package measures 1.45 mm x 1.00 mm x 0.60 mm.

EMIF02-1003M6 Quick Information

Product Type: EMI Filter
Canonical Name: EMIF02-1003M6 2nd Order Low Pass RC (Pi) EMI Filter with ESD Protection
Subcategory: RC (Pi) Network

EMIF02-1003M6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

EMIF02-1003M6 Estimated Pricing

Qty Low High
1+ $0.40 $0.40
10+ $0.33 $0.33
25+ $0.30 $0.30
50+ $0.28 $0.28
100+ $0.27 $0.27
250+ $0.24 $0.24
500+ $0.23 $0.23
1,000+ $0.22 $0.22
3,000+ $0.20 $0.20
6,000+ $0.18 $0.18
9,000+ $0.18 $0.18
15,000+ $0.17 $0.17
21,000+ $0.17 $0.17
30,000+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMIF02-1003M6 Features

  • 2nd order low pass RC (Pi) filter.
  • Dual channel EMI suppression.
  • 26 dB attenuation at 900 MHz.
  • Integrated ESD protection.
  • Compact 6-UFDFN surface mount package.

EMIF02-1003M6 Applications

  • Data line filtering in mobile devices.
  • EMI suppression for portable electronics.
  • Signal conditioning in RF circuits.
  • ESD protection for sensitive data lines.

EMIF02-1003M6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type?

6-UFDFN

What is the operating temperature range?

-40°C to 85°C

Is this component RoHS compliant?

Yes, RoHS3 Compliant

What is the cutoff frequency?

900 MHz

What attenuation does it provide?

26 dB at 900 MHz

Does it have ESD protection?

Yes

What is the filter order?

2nd order
