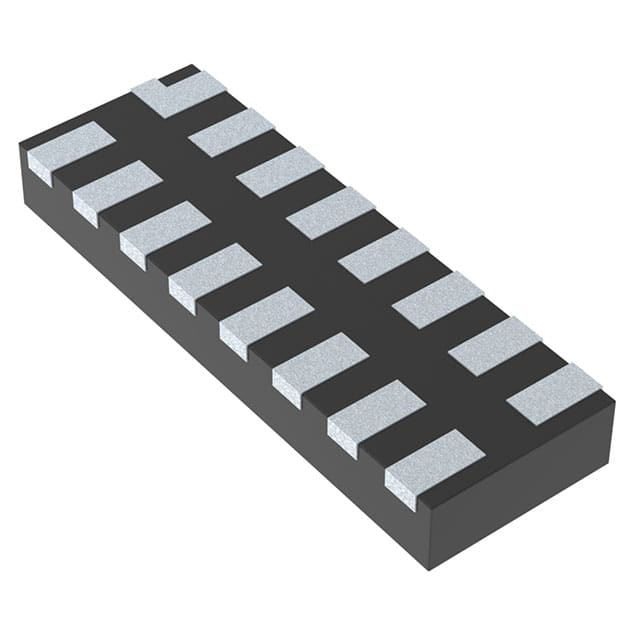

EMI8143MUTAG Common mode filter with integrated ESD protection, 6 lines, 100mA rated current, 6Ω typical DCR, and 3.50mm x 1.35mm XDFN16 package.
Mfr Part #:

EMI8143MUTAG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
Common mode filter with integrated ESD protection, 6 lines, 100mA rated current, 6Ω typical DCR, and 3.50mm x 1.35mm XDFN16 package.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.47 - $0.98

EMI8143MUTAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMI8143MUTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Features
Filter Type
Height (Max)
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

EMI8143MUTAG Description

Short technical summary and product information.

The EMI8143MUTAG is a 6-line common mode filter (CMF) with integrated ESD protection from onsemi, part of the EMI814x family. It is designed for high-speed differential signaling ports such as USB 3.0, MIPI D-PHY, and HDMI DVI. The filter provides differential mode cutoff frequency greater than 5 GHz at 3 dB and insertion loss less than 2.5 dB at 2.5 GHz. It offers common mode stop band attenuation exceeding 10 dB at 500 MHz and 15 dB at 700 MHz. The device features low channel resistance of 6 Ω typical and ESD protection up to ±15 kV contact per IEC61000-4-2 Level 4. The component is housed in a compact XDFN16 surface-mount package measuring 3.50 mm x 1.35 mm with a maximum height of 0.50 mm, suitable for space-constrained designs. It is rated for operation from -40°C to 85°C and is supplied in tape and reel packaging with 3000 units per reel.

EMI8143MUTAG Quick Information

Product Type: Common Mode Filter
Canonical Name: EMI8143MUTAG Common Mode Filter with Integrated ESD Protection
Subcategory: Common Mode Chokes

EMI8143MUTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EMI8143MUTAG Estimated Pricing

Qty Low High
1+ $0.98 $0.98
10+ $0.80 $0.80
25+ $0.74 $0.74
50+ $0.70 $0.70
100+ $0.66 $0.66
250+ $0.61 $0.61
500+ $0.58 $0.58
1,000+ $0.54 $0.54
3,000+ $0.50 $0.50
6,000+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMI8143MUTAG Features

  • Six-line common mode filter with ESD protection.
  • Cutoff frequency greater than 5 GHz.
  • Insertion loss below 2.5 dB at 2.5 GHz.
  • ESD protection to ±15kV contact per IEC61000-4-2.
  • RoHS compliant and halogen free.

EMI8143MUTAG Applications

  • Used in USB 3.0 high-speed differential ports.
  • Suitable for MIPI D-PHY in mobile devices.
  • Ideal for HDMI DVI display interfaces in mobiles.
  • Applied in eSATA and SD card interfaces.

EMI8143MUTAG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the EMI8143MUTAG?

The maximum current rating is 100mA per line.

What is the typical DC resistance of this filter?

The typical DC resistance is 6 ohms per line.

What ESD protection level does the EMI8143MUTAG provide?

It provides ESD protection of ±15kV contact per IEC61000-4-2 Level 4.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the EMI8143MUTAG RoHS compliant?

Yes, the device is RoHS3 compliant and Pb-free.

What package does the EMI8143MUTAG come in?

It is housed in an XDFN16 surface-mount package, measuring 3.50mm x 1.35mm with a maximum height of 0.50mm.
