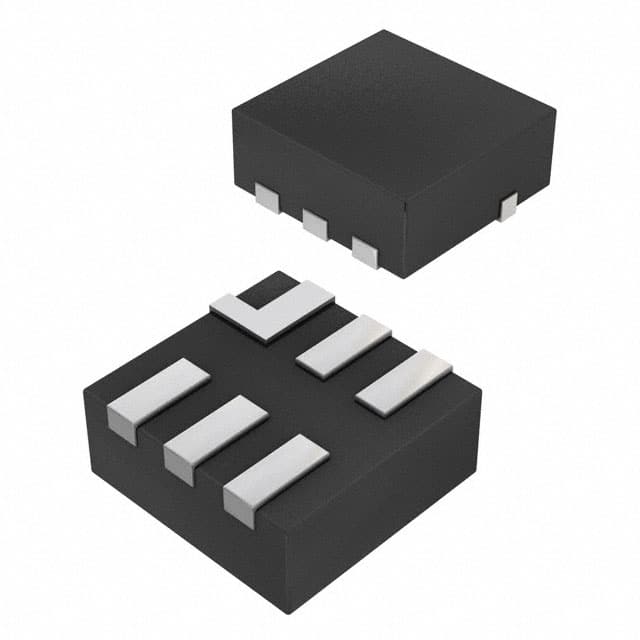

EMI8141MUTAG The EMI8141MUTAG is a common mode filter with integrated ESD protection from On Semiconductor. It features 100mA current rating, 2 lines, and is housed in an XDFN6 package.
Mfr Part #:

EMI8141MUTAG

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The EMI8141MUTAG is a common mode filter with integrated ESD protection from On Semiconductor. It features 100mA current rating, 2 lines, and is housed in an XDFN6 package.
✓ Total Stock: 3,333 pcs
$ Price Range: $0.37 - $0.78

EMI8141MUTAG Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,941 pcs
On Request
1941 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,312 pcs
On Request
1312 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMI8141MUTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Features
Filter Type
Height (Max)
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

EMI8141MUTAG Description

Short technical summary and product information.

The EMI8141MUTAG is a common mode filter with integrated ESD protection, part of On Semiconductor's EMI814x family. It is designed for differential signaling I/Os requiring both common mode filtering and ESD protection in a single package.



Key electrical specifications include a total insertion loss of less than 2.5 dB at 2.5 GHz, a differential mode cutoff frequency greater than 5 GHz, and high common mode stop band attenuation of more than 10 dB at 500 MHz and more than 15 dB at 700 MHz. The device provides ESD protection up to ±15 kV contact per IEC61000-4-2 Level 4.



The filter is well-suited for high-speed differential ports such as USB 3.0, MIPI D-PHY, and corresponding ports in removable storage and other applications where ESD protection is required in a small footprint. It is available in a RoHS-compliant, XDFN6 package for a single differential pair.

EMI8141MUTAG Quick Information

Product Type: Common Mode Filter with ESD Protection
Series: EMI8141
Canonical Name: EMI8141 Common Mode Filter with ESD Protection
Subcategory: Common Mode Chokes

EMI8141MUTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EMI8141MUTAG Estimated Pricing

Qty Low High
1+ $0.78 $0.78
10+ $0.64 $0.64
25+ $0.59 $0.59
50+ $0.56 $0.56
100+ $0.53 $0.53
250+ $0.49 $0.49
500+ $0.46 $0.46
1,000+ $0.43 $0.43
3,000+ $0.39 $0.39
6,000+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMI8141MUTAG Features

  • Total insertion loss <2.5 dB at 2.5 GHz.
  • Differential mode cutoff frequency >5 GHz.
  • Common mode attenuation >10 dB at 500 MHz.
  • ESD protection up to ±15 kV contact.
  • RoHS compliant, Pb-Free, Halogen Free.

EMI8141MUTAG Applications

  • Ideal for USB 3.0 differential ports.
  • Suitable for MIPI D-PHY interfaces.
  • Used in mobile phone display connections.
  • Protects high-speed data lines in cameras.

EMI8141MUTAG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the EMI8141MUTAG?

The maximum current rating is 100 mA.

What is the package type for the EMI8141MUTAG?

The package type is XDFN6 (6-pin XDFN).

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is the EMI8141MUTAG RoHS compliant?

Yes, the device is RoHS compliant and Pb-Free.

What ESD protection level does the EMI8141MUTAG provide?

It provides ESD protection up to ±15 kV contact per IEC61000-4-2 Level 4.

What is the insertion loss at 2.5 GHz?

The total insertion loss is less than 2.5 dB at 2.5 GHz.

What is the common mode attenuation at 500 MHz?

The common mode stop band attenuation is greater than 10 dB at 500 MHz.
