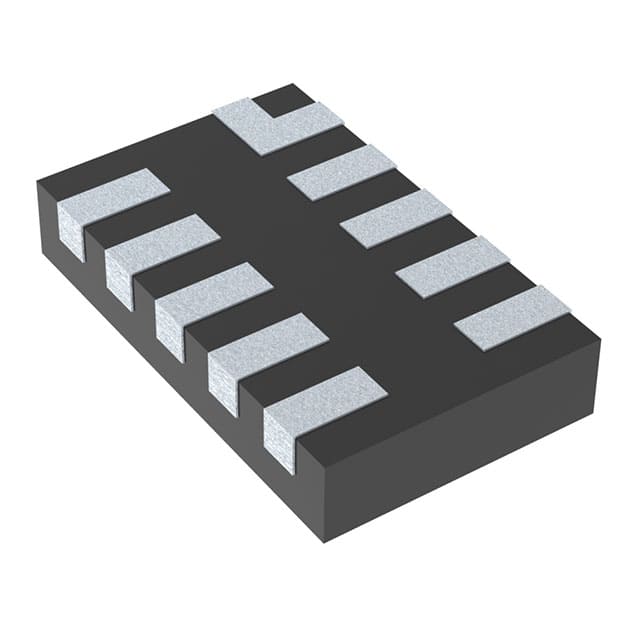

EMI8132MUTAG The EMI8132MUTAG is a 4-line common mode filter with integrated ESD protection from On Semiconductor. It is rated for 100mA and comes in a surface mount XDFN-10 package.
Mfr Part #:

EMI8132MUTAG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The EMI8132MUTAG is a 4-line common mode filter with integrated ESD protection from On Semiconductor. It is rated for 100mA and comes in a surface mount XDFN-10 package.
✓ Total Stock: 6,511 pcs
$ Price Range: $0.35 - $1.59

EMI8132MUTAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
6,511 pcs
On Request
6511 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMI8132MUTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Features
Filter Type
Height (Max)
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

EMI8132MUTAG Description

Short technical summary and product information.

The On Semiconductor EMI8132MUTAG is a 4-line common mode filter with integrated ESD protection, part of the EMI813x family. It is designed for high-speed differential signaling ports such as MIPI D-PHY, USB 3.0, and HDMI. The device provides common mode filtering and ESD protection up to ±15kV contact discharge per IEC61000-4-2 in a single package.



Key electrical specifications include a maximum current rating of 100mA, a typical DC resistance of 6 Ohms, and a differential mode insertion loss of less than 3.7 dB at 2.5 GHz. The differential mode cutoff frequency is greater than 2.5 GHz. The device is housed in a compact, surface mount XDFN-10 package measuring 2.20mm by 1.35mm with a maximum height of 0.50mm.



The EMI8132MUTAG is RoHS compliant, lead-free, and halogen-free. It is supplied in tape and reel packaging with a standard quantity of 3000 units. This component is suitable for applications requiring both signal filtering and robust ESD protection in a small footprint.

EMI8132MUTAG Quick Information

Product Type: Common Mode Filter with ESD Protection
Series: EMI813x
Canonical Name: On Semiconductor EMI8132MUTAG Common Mode Filter with ESD Protection
Subcategory: Common Mode Chokes

EMI8132MUTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

EMI8132MUTAG Estimated Pricing

Qty Low High
1+ $1.59 $1.59
500+ $0.60 $0.60
3,000+ $0.39 $0.39
6,000+ $0.36 $0.36
9,000+ $0.35 $0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMI8132MUTAG Features

  • 4-line common mode filter with ESD protection.
  • Rated for 100mA maximum current.
  • ±15kV contact ESD protection per IEC61000-4-2.
  • Differential mode cutoff frequency greater than 2.5 GHz.
  • Compact surface mount XDFN-10 package.

EMI8132MUTAG Applications

  • Ideal for MIPI D-PHY differential signaling ports.
  • Used in USB 3.0 and HDMI interfaces.
  • Suitable for SD card and eSATA interfaces.
  • Designed for mobile phones and digital cameras.

EMI8132MUTAG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the package type for the EMI8132MUTAG?

The EMI8132MUTAG comes in a surface mount 10-XFDFN (XDFN-10) package.

What is the operating temperature range of the EMI8132MUTAG?

The operating temperature range is -40°C to 85°C.

Is the EMI8132MUTAG RoHS compliant?

Yes, the EMI8132MUTAG is RoHS3 compliant and lead-free.

What is the maximum current rating for the EMI8132MUTAG?

The maximum current rating is 100mA.

What level of ESD protection does the EMI8132MUTAG provide?

It provides ±15kV contact discharge ESD protection per the IEC61000-4-2 standard.

What is the insertion loss of the EMI8132MUTAG?

The differential mode insertion loss is less than 3.7 dB at 2.5 GHz.
