| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,000 pcs
|
72000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Center | |
| ESD Protection | |
| ESD Protection Voltage | |
| Filter Order | |
| Height | |
| Lead Pitch | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Technology | |
| Type | |
| Values | |
| Width |

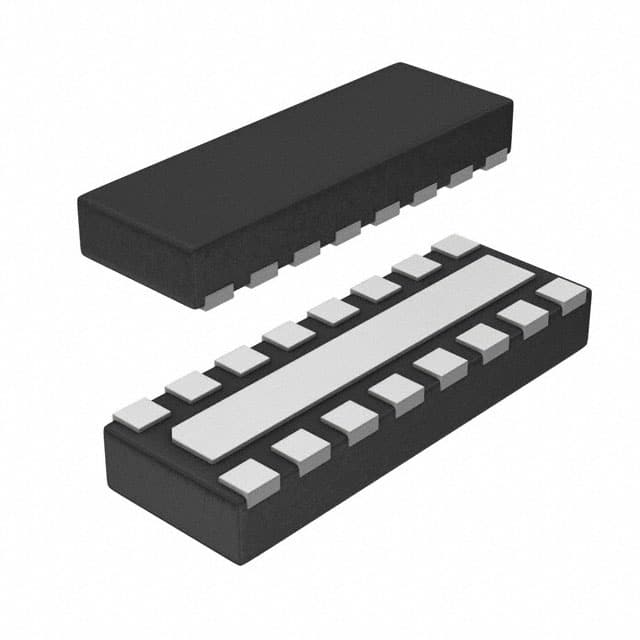

The EMI5208MUTAG from On Semiconductor is an 8-channel RC (Pi) EMI filter array with integrated ESD protection. It features typical component values of R=100Ω and C=7pF, providing a cutoff frequency of 250MHz and stop band attenuation greater than 20dB from 800MHz to 5GHz. This performance makes it suitable for data lines up to 167Mbps, minimizing interference from wireless signals such as 2G/3G, GPS, Bluetooth, and WLAN. The device is housed in a low-profile 16-lead UDFN package with 0.4mm lead pitch, measuring 3.30mm x 1.35mm x 0.55mm, and operates over -40°C to 85°C. It is Pb-Free and RoHS3 compliant (unverified). The integrated ESD protection provides ±8kV contact discharge per IEC61000-4-2 Level 4 on each channel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.41 | $0.41 |
| 50+ | $0.38 | $0.38 |
| 100+ | $0.36 | $0.36 |
| 250+ | $0.33 | $0.33 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.29 | $0.29 |
| 3,000+ | $0.23 | $0.23 |
| 6,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device is packaged in a 16-UFDFN Exposed Pad surface mount package with 0.4mm lead pitch.
The operating temperature range is -40°C to 85°C.
The device is listed as RoHS3 Compliant, but this is unverified. The datasheet confirms it is a Pb-Free Device.
The typical cutoff frequency at 3dB is 250MHz.
Each channel provides ±8kV ESD protection for contact discharge per IEC61000-4-2 Level 4.
It has 8 channels.
Stop band attenuation is greater than 20dB from 800MHz to 5GHz.
