EMI4192MTTAG

The EMI4192MTTAG from On Semiconductor is an integrated common mode filter (CMF) designed for high-speed digital serial interfaces such as HDMI or MIPI D-PHY. It combines EMI filtering with ESD protection in a single compact device, providing cost and space savings over discrete solutions.

This filter features four lines (two differential pairs) with a common mode impedance of 32 Ω at 100 MHz. It offers a large differential mode bandwidth with a cutoff frequency greater than 2 GHz, ensuring minimal signal degradation for high-speed data lines. The device provides ESD protection up to ±15 kV contact discharge per IEC61000-4-2 Level 4, safeguarding sensitive ASICs from electrostatic discharge.

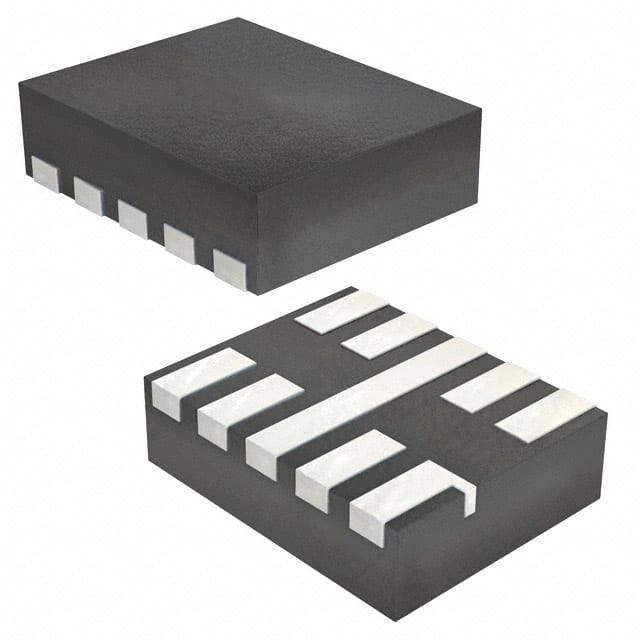

The EMI4192MTTAG is rated for a maximum DC current of 100 mA and has a maximum DC resistance of 5 Ω. It operates over a temperature range of -40°C to 85°C and can be stored from -65°C to 150°C. The filter is packaged in a low-profile, surface-mount WDFN10 package measuring 2.5 mm x 2.0 mm with a maximum height of 0.8 mm, suitable for space-constrained designs.

This device is Pb-Free, Halogen Free/BFR Free, and RoHS compliant. It is supplied in tape and reel packaging with a standard quantity of 3000 units per reel.
