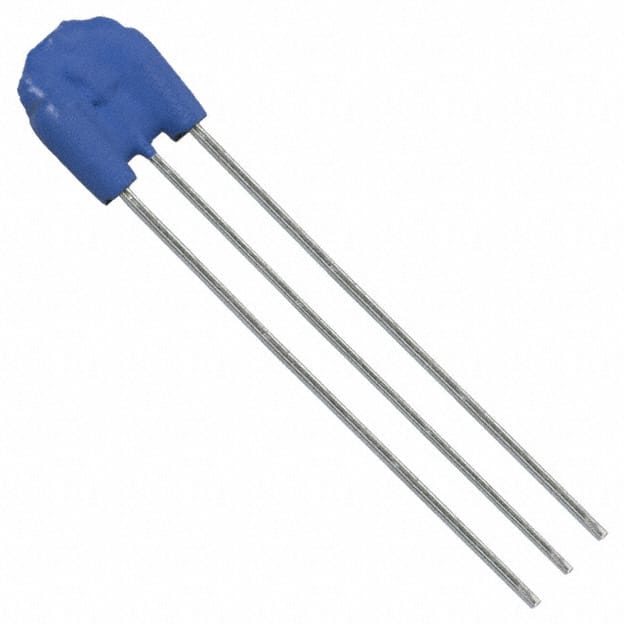

EMI222T-RC The Bourns EMI222T-RC is a 3rd order LC (T-Type) low pass EMI filter with 2200 pF capacitance, rated for 5 A and 50 V. It comes in a through hole radial-3 lead package.
Mfr Part #:

EMI222T-RC

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns EMI222T-RC is a 3rd order LC (T-Type) low pass EMI filter with 2200 pF capacitance, rated for 5 A and 50 V. It comes in a through hole radial-3 lead package.
✓ Total Stock: 2 pcs

EMI222T-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMI222T-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Current
Dielectric Withstanding Voltage
ESD Protection
Filter Order
Height
Insulation Resistance
Lead Spacing
Lead Style
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Voltage
Width
View Similar Products (0)

EMI222T-RC Description

Short technical summary and product information.

The Bourns EMI222T-RC is a single-channel, 3rd order LC (T-Type) low pass EMI filter designed for general purpose noise suppression. It features a capacitance of 2200 pF with a tolerance of ±20% and a maximum DC resistance of 0.05 Ohm.



This filter is rated for a continuous current of 5 A and a voltage of 50 VDC. It provides 25 dB of attenuation across a frequency range of 45 MHz to 200 MHz and 15 dB of attenuation from 20 MHz to 800 MHz. The insulation resistance is a minimum of 10 GΩ at 50 VDC, and the dielectric withstanding voltage is 125 VDC.



The EMI222T-RC is housed in a through hole, radial-3 lead package with maximum dimensions of 9.00 mm length, 3.20 mm width, and 8.00 mm height. It has a lead spacing of 2.5 mm and operates over a temperature range of -25°C to 85°C.

EMI222T-RC Quick Information

Product Type: EMI/RFI Filter (LC, RC Networks)
Series: EMI T
Canonical Name: Bourns EMI222T-RC LC (T-Type) Low Pass EMI Filter
Subcategory: LC (T-Type) Network

EMI222T-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

EMI222T-RC Features

  • 3rd order LC (T-Type) low pass filter.
  • Rated for 5 A continuous current.
  • Rated for 50 VDC operation.
  • Provides 25 dB attenuation from 45-200 MHz.
  • Through hole radial-3 lead package.

EMI222T-RC Applications

  • Suitable for personal computers and printers.
  • Used in digital audio and video equipment.
  • Ideal for switch power supplies and AC adapters.
  • Applicable in industrial electronic devices.

EMI222T-RC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the EMI222T-RC?

The capacitance is 2200 pF with a tolerance of ±20%.

What is the rated current and voltage for this filter?

The rated current is 5 A and the rated voltage is 50 V.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

What is the package type for the EMI222T-RC?

It comes in a through hole, radial-3 lead package.

Is the EMI222T-RC RoHS compliant?

Yes, it is RoHS3 compliant.

What is the maximum DC resistance?

The maximum DC resistance is 0.05 Ohm.

What attenuation does this filter provide?

It provides 25 dB attenuation from 45 MHz to 200 MHz and 15 dB attenuation from 20 MHz to 800 MHz.
