| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

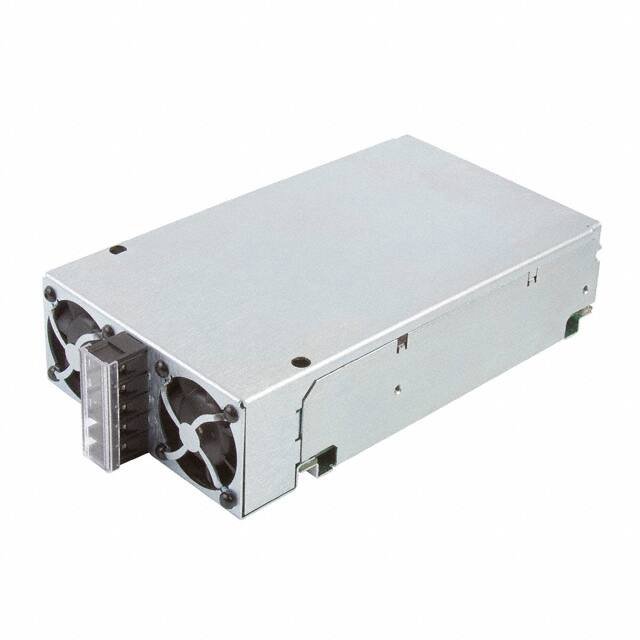

The XP Power EMH350PD23-EF is an enclosed AC/DC converter with a power output of 350W. It features a 48V nominal output voltage and a current rating of 4.2A, delivering 87% efficiency.
Designed for versatility, this converter operates within an input voltage range of 80-275 VAC and includes features such as adjustable output, load sharing, power factor correction (PFC), remote on/off, remote sense, and a standby output. It is suitable for applications requiring ITE (Commercial) and Medical approvals, with standard number 62368-1 compliance.
The unit has a compact footprint with dimensions of 7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm) and is designed for chassis mounting. It operates within a temperature range of 0°C to 70°C with derating. The EMH350 series also provides a 12V/0.6A fan supply output and optional features like PMBus compatibility on certain models.
The nominal output voltage is 48V.
The maximum power output is 350W.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 177.8mm x 101.6mm x 44.5mm.
It holds IEC60950 (IT), IEC60601 BF (Medical), CB, CE, TUV, and UL approvals.
