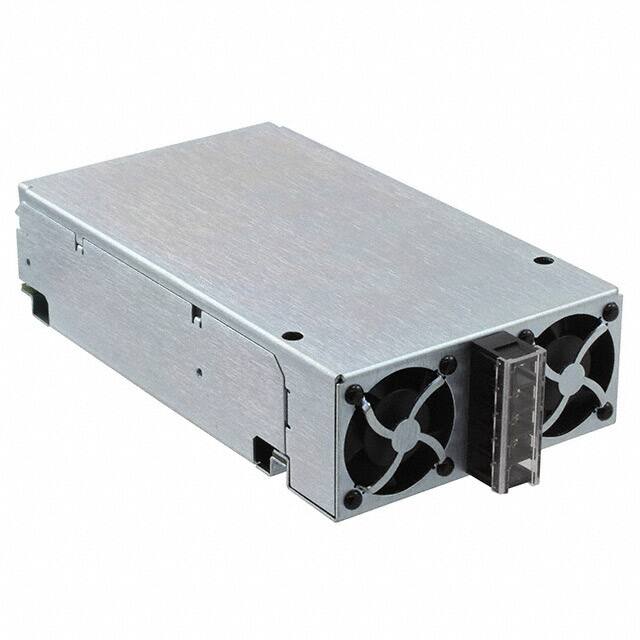

The XP Power EMH350PD21-EF is an enclosed AC/DC converter designed for high power density applications. It delivers up to 350W of power with a 24V output voltage and a maximum current of 8.3A. The converter operates with an efficiency of 87% and features a universal input voltage range.
This model is suitable for ITE (Commercial) and Medical applications, indicated by its approval agencies including CB, CE, TUV, and UL. It offers two outputs and features such as adjustable output, load sharing, PFC, remote on/off, remote sense, standby output, and universal input.
The physical dimensions are 177.8mm in length, 101.6mm in width, and 44.5mm in height. It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. The EMH350PD21-EF also includes features like a standby output and a fan supply output.
The EMH350PD21-EF has an output voltage of 24V.
The maximum output current for the EMH350PD21-EF is 8.3 A.
The EMH350PD21-EF has a power rating of 350W.
The operating temperature range is 0°C to 70°C with derating.
The EMH350PD21-EF is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
