| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

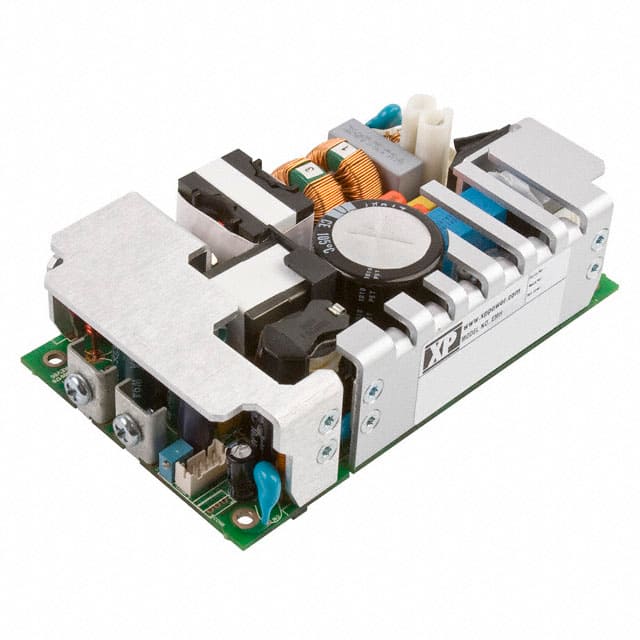

The XP Power EMH250PS48 is an open-frame AC/DC converter delivering 250W of power with a 48V output voltage. It features a universal input voltage range of 80-275 VAC and operates with an efficiency of 87%.
Designed for reliability, this converter has an operating temperature range of 0°C to 70°C with derating. Its compact dimensions (127.0mm x 76.2mm x 36.3mm) and chassis mount type make it suitable for various integration needs.
The EMH250PS48 includes features such as adjustable output, load sharing, remote sense, and a standby output. It meets safety standard 62368-1 and is approved by CB, CE, TUV, and UL, making it suitable for ITE (Commercial) and Medical applications.
This model is part of the EMH series, known for its high power density and compliance with industry standards.
The operating input voltage range is 80 VAC to 275 VAC.
The mounting type is chassis mount.
The operating temperature range is 0°C to 70°C with derating.
The output power rating is 252W at 48V.
The typical efficiency is 87%.
A 12V/0.6A fan supply is provided.
It complies with IEC 62368-1.
