| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,800 pcs
|
3800 pcs | On Request | 1 | On Request | On Request | 1245 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Power | |
| Resistor | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

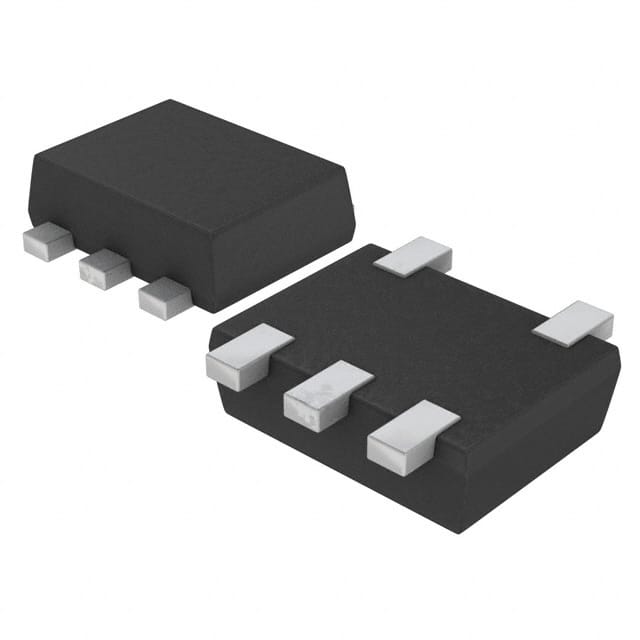

The EMG9T2R from ROHM Semiconductor is a dual NPN pre-biased transistor array. It integrates two NPN transistors with built-in bias resistors in a single surface mount package, simplifying circuit design and reducing component count. Each transistor features a collector-emitter voltage rating of 50V and a collector current capability of 100mA, with a maximum power dissipation of 150mW. The device includes internal base resistors of 10kΩ, ensuring consistent biasing. The transistors exhibit a DC current gain (hFE) of minimum 30 at 5mA, 5V, and a transition frequency of 250MHz, making them suitable for switching and amplification applications. The EMG9T2R is housed in a compact 6-SMD (5 leads) flat lead package (EMT5) and is designed for surface mount assembly. It is compliant with RoHS3 and REACH standards, though these certifications are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.35 | $0.35 |
| 100+ | $0.22 | $0.22 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.15 | $0.15 |
| 2,000+ | $0.13 | $0.13 |
| 8,000+ | $0.11 | $0.11 |
| 16,000+ | $0.10 | $0.10 |
| 24,000+ | $0.10 | $0.10 |
| 40,000+ | $0.09 | $0.09 |
| 56,000+ | $0.09 | $0.09 |
| 80,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50V
6-SMD (5 Leads), Flat Lead (EMT5)
RoHS3 Compliant (unverified)
100mA
150mW
10kΩ
Surface Mount
