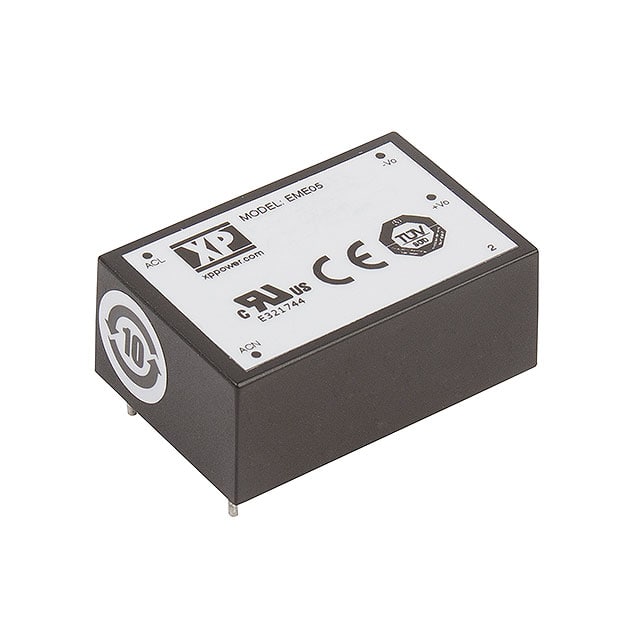

The XP Power EME05US05 is a compact AC-DC power supply designed for medical applications. It delivers a 5W output power with a single 5VDC output at 1A. The converter features a wide input voltage range of 85 to 264 VAC and an efficiency of up to 80% typical.
This series is approved to world-wide medical safety standards, including CE, cURus, and TUV, and offers compliance with Class B for conducted and radiated emissions. It provides 2 x MOPP (Means of Patient Protection) and Class II isolation, making it suitable for integration into healthcare products.
The EME05US05 is available in an enclosed, through-hole mounted 4-DIP module package. Its dimensions are 38.1mm x 25.4mm x 15.2mm. The operating temperature range is -25°C to 70°C with derating. Key features include universal input, peak load capability, and no external components required.
The XP Power EME05US05 provides a 5VDC output voltage and 1A output current.
The EME05US05 converter accepts an input voltage range of 85 to 264 VAC.
The XP Power EME05US05 has a power rating of 5W.
The EME05US05 AC-DC converter has a typical efficiency of 80%.
The operating temperature range for the EME05US05 is -25°C to 70°C with derating.
The EME05US05 is available in a 4-DIP Module package for through-hole mounting.
The dimensions of the EME05US05 are 38.1mm x 25.4mm x 15.2mm.
