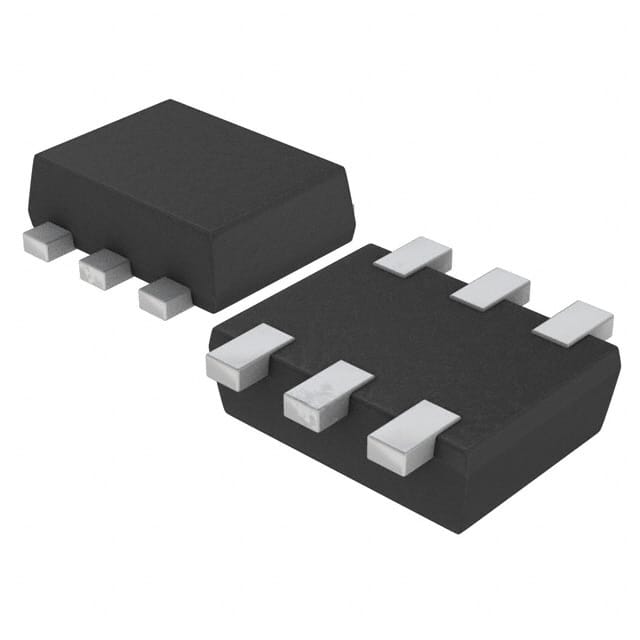

The EMD22T2R from ROHM Semiconductor is a dual pre-biased transistor array containing one NPN and one PNP transistor in a single surface-mount package. Each transistor includes integrated bias resistors (47 kΩ base resistor) to simplify circuit design by reducing external component count.
Key electrical specifications include a collector current rating of 100 mA, collector-emitter breakdown voltage of 50 V, and a transition frequency of 250 MHz. The DC current gain (hFE) is minimum 80 at 10 mA collector current and 5 V collector-emitter voltage. The collector-emitter saturation voltage is maximum 300 mV at 2.5 mA collector current and 250 µA base current.
The device is housed in a SOT-563 or SOT-666 package with an EMT6 supplier device package designation, suitable for surface-mount assembly. Power dissipation is rated at 150 mW. This component is RoHS3 compliant and has an MSL of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.38 | $0.38 |
| 100+ | $0.24 | $0.24 |
| 500+ | $0.18 | $0.18 |
| 1,000+ | $0.16 | $0.16 |
| 2,000+ | $0.15 | $0.15 |
| 8,000+ | $0.12 | $0.12 |
| 16,000+ | $0.11 | $0.11 |
| 24,000+ | $0.11 | $0.11 |
| 40,000+ | $0.10 | $0.10 |
| 56,000+ | $0.10 | $0.10 |
| 80,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector current (Ic) is rated at 100 mA.
The collector-emitter breakdown voltage (Vceo) is 50 V.
The EMD22T2R is available in SOT-563 or SOT-666 surface-mount packages with an EMT6 supplier device package.
Yes, the EMD22T2R is RoHS3 compliant.
The transition frequency (ft) is 250 MHz.
The power dissipation (Pd) is 150 mW.
