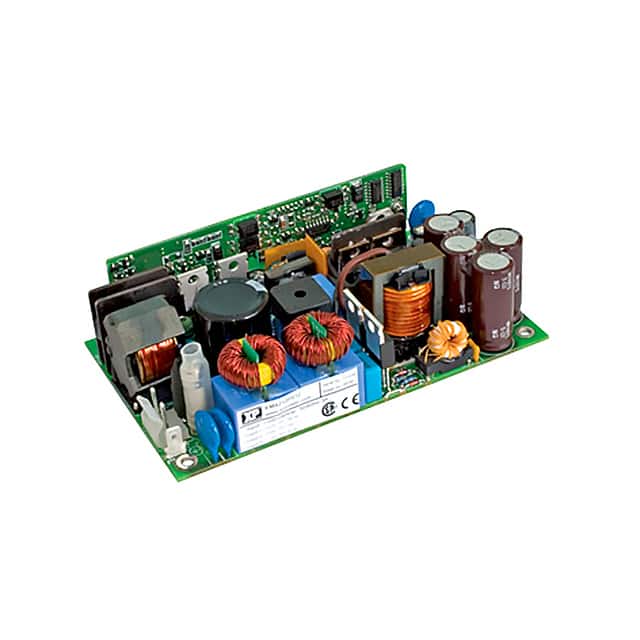

The XP Power EMA212PS12 is an open-frame AC/DC converter designed for demanding applications. It provides a 12V output with a maximum current of 16.7A, delivering up to 212W of power.
This converter features a universal AC input range of 90-264 VAC and achieves high efficiency of up to 90% at full load. It operates reliably within a temperature range of -10°C to 70°C, with derating at higher temperatures. The unit includes essential features such as a Power Good signal, remote on/off control, and active current sharing.
With a compact footprint of 5.00" x 3.00" x 1.22", the EMA212PS12 is suitable for chassis mounting. Its design prioritizes high power density, making it ideal for space-constrained systems in commercial and ITE applications.
The main output voltage (V1) is 12 VDC, with a standby output of 5 V and a fan output of 12 V.
The maximum output current is 16.7 A.
The operating temperature range is -10°C to 70°C, with derating at higher temperatures.
The dimensions are 127.0mm (Length) x 76.2mm (Width) x 31.0mm (Height).
It supports a universal AC input voltage range of 90-264 VAC.
The efficiency is up to 90% at full load.
Yes, it includes a Power Good signal.
