EM3597-RTR The Silicon Labs EM3597-RTR is an integrated System-on-Chip featuring an ARM Cortex-M3 processor and a 2.4 GHz IEEE 802.15.4 transceiver. It offers 512kB flash and 64kB RAM.
Mfr Part #:

EM3597-RTR

Available from 2 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs EM3597-RTR is an integrated System-on-Chip featuring an ARM Cortex-M3 processor and a 2.4 GHz IEEE 802.15.4 transceiver. It offers 512kB flash and 64kB RAM.
✓ Total Stock: 343,000 pcs
$ Price Range: $710.26

EM3597-RTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
278,000 pcs
On Request
278000 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
65,000 pcs
On Request
65000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EM3597-RTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
GPIO
Memory Size
Modulation
Mounting Type
Operating Temperature
Operating Voltage
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Supplier Package
Tape & Reel
Type
USB
Voltage
View Similar Products (0)

EM3597-RTR Description

Short technical summary and product information.

The Silicon Labs EM3597-RTR is a high-performance, integrated System-on-Chip (SoC) designed for ZigBee and 802.15.4 wireless applications. It combines a 32-bit ARM Cortex-M3 processor with a 2.4 GHz transceiver, offering a complete solution for embedded wireless systems.



Key electrical specifications include 512kB of flash memory and 64kB of RAM, supporting flexible application development. The device operates within a voltage range of 2.1V to 3.6V and features an integrated AES128 encryption accelerator. It supports various serial interfaces such as UART, SPI, and TWI, with optional USB communication.



The transceiver provides exceptional RF performance with a configurable output power up to +8 dBm and a receive sensitivity down to -102 dBm. It operates at 2.4GHz with a maximum data rate of 5Mbps and uses O-QPSK modulation, compliant with IEEE 802.15.4 standards and supporting the Zigbee protocol.

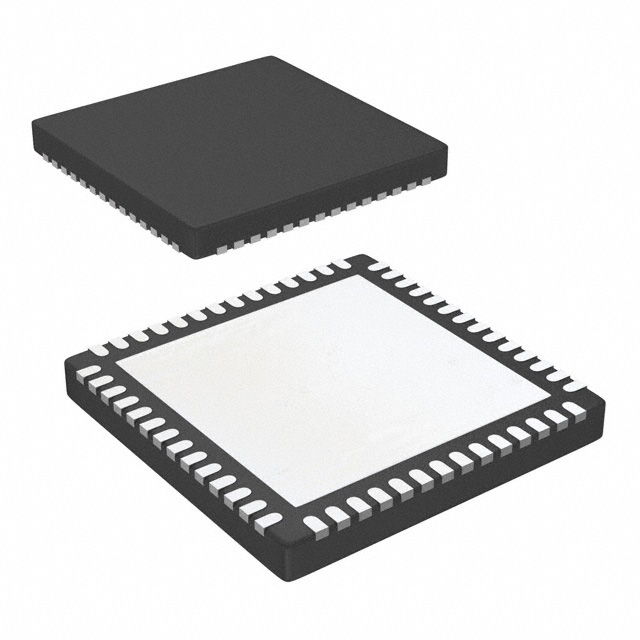

Packaged in a 56-VFQFN exposed pad (8x8mm), the EM3597-RTR is designed for surface mounting. It operates across a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.

EM3597-RTR Quick Information

Product Type: RF Transceiver IC
Series: EM359x
Canonical Name: Silicon Labs EM3597-RTR Zigbee/802.15.4 System-on-Chip
Subcategory: RF Transceiver ICs

EM3597-RTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EM3597-RTR Estimated Pricing

Qty Low High
1+ $710.26 $710.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

EM3597-RTR Features

  • Integrated ARM Cortex-M3 processor.
  • 512kB Flash and 64kB RAM.
  • 2.4 GHz IEEE 802.15.4 transceiver.
  • Supports Zigbee protocol.
  • Surface mount 56-VFQFN package.

EM3597-RTR Applications

  • Ideal for Zigbee mesh networks.
  • Suitable for IoT devices.
  • Used in wireless sensor nodes.
  • Enables 802.15.4 communication.

EM3597-RTR FAQs

7 frequently asked questions generated from this part’s specifications.
What type of processor is used in the EM3597-RTR?

The EM3597-RTR uses a 32-bit ARM Cortex-M3 processor.

How much flash and RAM does the EM3597-RTR have?

It has 512kB of flash memory and 64kB of RAM.

What is the operating voltage range for the EM3597-RTR?

The operating voltage range is 2.1V to 3.6V.

What is the operating temperature range for this RF transceiver IC?

The operating temperature range is -40°C to 85°C.

What package type is the EM3597-RTR supplied in?

It is supplied in a 56-VFQFN exposed pad package.

What is the RF frequency and protocol supported by the EM3597-RTR?

It supports 2.4GHz frequency and IEEE 802.15.4 and Zigbee protocols.

What is the RX sensitivity of the EM3597-RTR?

The RX sensitivity is -102dBm.
