| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Built in Switch | |
| Detent | |
| Electrical Output | |
| Encoder Type | |
| Minimum Order Quantity | |
| Mounting Type | |
| Order Multiple | |
| Orientation | |
| Output Current | |
| Output Type | |
| Output Voltage High | |
| Output Voltage Low | |
| Package Type | |
| Power Dissipation | |
| Pulses per Revolution | |
| Resolution | |
| Rise & Fall Time | |
| Rotational Life (Cycles Min) | |
| Standard Pack Quantity | |
| Supply Current | |
| Supply Voltage | |
| Termination Style | |
| Voltage |

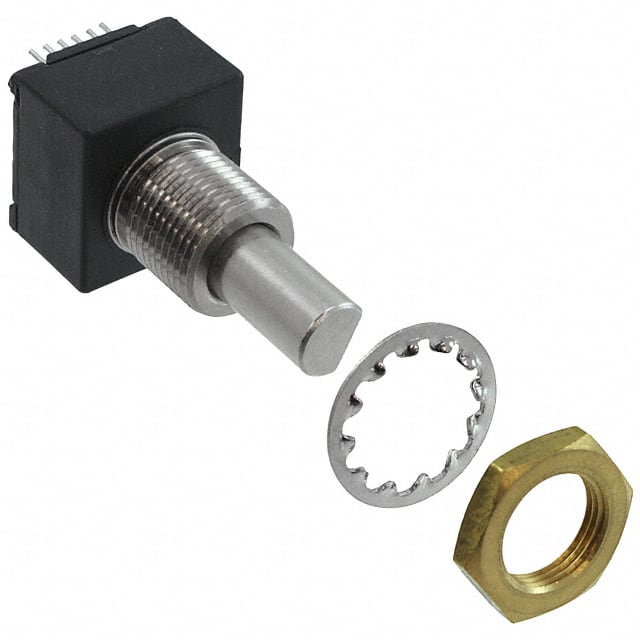

The Bourns EM14R0D-M20-L016N is a 14mm rotary optical encoder featuring a 2-bit quadrature output and 16 pulses per revolution (PPR). It is designed for panel and PCB through-hole mounting with a vertical orientation and PC Pin termination style. This encoder operates at a supply voltage of 5.0 VDC ± 0.25 VDC and has a maximum supply current of 26 mA.
Key electrical characteristics include a low output voltage of 800 mV maximum and a high output voltage of 4.0 VDC minimum. The rise/fall time is typically 200 ns, and the power dissipation is a maximum of 167 mW. The encoder has a rotational life of at least 1 million cycles and features a 6mm diameter flatted end actuator. It does not include a detent or a built-in switch.
This optical encoder is suitable for applications requiring precise rotational feedback. Its compact package size and robust design make it a reliable choice for various industrial and consumer electronics. The RoHS3 compliant status indicates adherence to environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 5.0 VDC ± 0.25 VDC.
The encoder offers a resolution of 8 to 64 pulses per revolution (PPR).
It provides a 2-bit quadrature code output.
The rotational life is a minimum of 1 million cycles.
It is designed for panel and PCB through hole mounting.
No, this encoder does not have a built-in switch.
