| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Built in Switch | |
| Detent | |
| Encoder Type | |
| Insulation Resistance | |
| Mounting Type | |
| Orientation | |
| Output Current | |
| Output Type | |
| Power Dissipation | |
| Pulses per Revolution | |
| Rotational Life (Cycles Min) | |
| Supply Current | |
| Supply Voltage | |
| Termination Style | |
| Voltage |

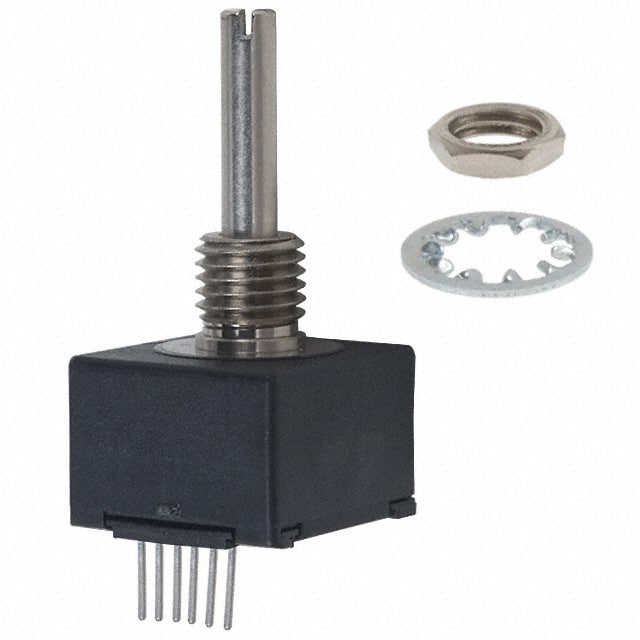

The Bourns EM14C0D-E28-L064S is a compact rotary optical encoder designed for precise rotational sensing. It provides a 2-bit quadrature code output with a resolution of 64 pulses per revolution (PPR).
This encoder operates with a supply voltage of 5.0 VDC ± 0.25 VDC and has a maximum supply current of 26 mA. Key electrical characteristics include a typical rise/fall time of 200 ns and a maximum power dissipation of 167 mW. The phase angle between channels A and B is 90 °e ± 45 °e for clockwise rotation.
Featuring a built-in push switch, this encoder is suitable for applications requiring both rotational input and a push-button function. It is designed for panel or PCB through-hole mounting with a vertical orientation and a 1/8" diameter slotted end actuator. The device offers a rotational life of at least 1 million cycles and a termination style of PC pin.
Compliance includes RoHS3 status. The compact package size and high rotational cycle life make the EM14C0D-E28-L064S a reliable choice for various automation and control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resolution is 64 pulses per revolution (PPR).
The operating voltage is 5.0 VDC ± 0.25 VDC.
Yes, this encoder model includes a built-in push switch.
It provides a 2-bit quadrature code output.
It is designed for panel and PCB through-hole mounting.
The rotational life is a minimum of 1 million cycles.
