| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Built in Switch | |
| Detent | |
| Electrical Output | |
| Encoder Type | |
| Insulation Resistance | |
| Mounting Type | |
| Orientation | |
| Output Current | |
| Output Type | |
| Output Voltage High | |
| Output Voltage Low | |
| Phase Angle | |
| Power Dissipation | |
| Pulse Width | |
| Pulses per Revolution | |
| Rise & Fall Time | |
| Rotational Life (Cycles Min) | |
| Supply Current | |
| Supply Voltage | |
| Termination Style | |
| Voltage |

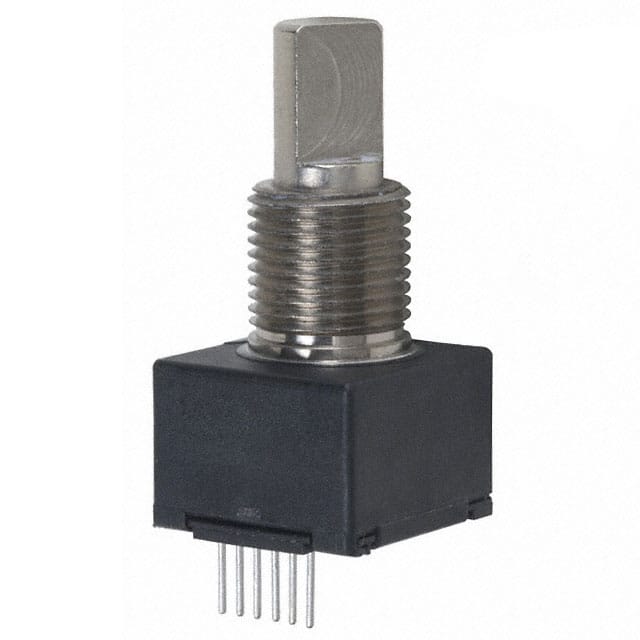

This Bourns EM14A0D-B24-L032S is a compact rotary optical encoder designed for panel and PCB through-hole mounting. It provides a 2-bit quadrature code output with a resolution of 32 pulses per revolution (PPR).
The encoder features a built-in push switch and operates with a supply voltage of 5.0 VDC. Its electrical characteristics include a maximum supply current of 26 mA, a typical rise/fall time of 200 ns, and an insulation resistance of 1,000 megohms minimum at 500 VDC.
With a rotational life of at least 1 million cycles, this encoder is suitable for applications requiring durable and precise rotational input. The termination style is PC pin, and the orientation is vertical, facilitating integration into various designs. The actuator type is a 1/4" diameter slotted end.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resolution is 32 pulses per revolution (PPR).
The operating voltage is 5.0 VDC.
Yes, this encoder features a built-in push switch.
It supports panel and PCB through-hole mounting.
The rotational life is a minimum of 1 million cycles.
