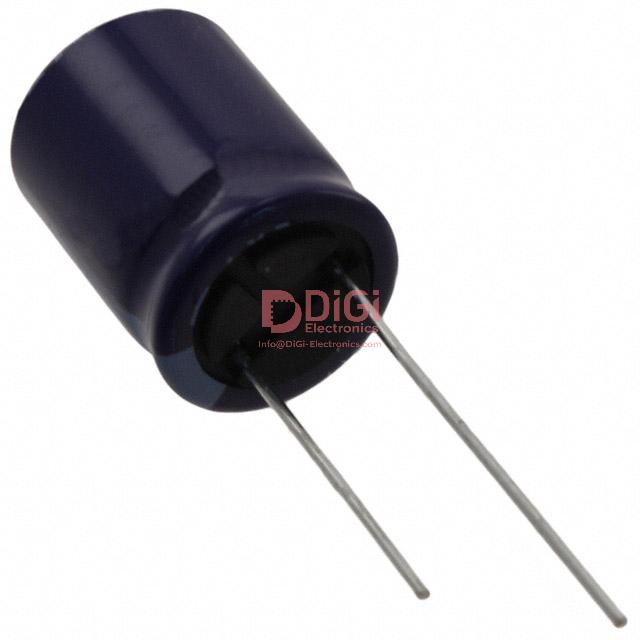

ELXZ6R3ELL682ML25S This United Chemi-Con LXZ6.3VB682M16X25LL is an aluminum electrolytic capacitor with a capacitance of 6800µF and a voltage rating of 6.3V. It offers a tolerance of ±20% and a rated lifetime of 8000 hours at 105°C.
Mfr Part #:

ELXZ6R3ELL682ML25S

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
This United Chemi-Con LXZ6.3VB682M16X25LL is an aluminum electrolytic capacitor with a capacitance of 6800µF and a voltage rating of 6.3V. It offers a tolerance of ±20% and a rated lifetime of 8000 hours at 105°C.
✓ Total Stock: 55 pcs
$ Price Range: $1.20

ELXZ6R3ELL682ML25S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELXZ6R3ELL682ML25S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Failure Rate
Impedance
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Polarization
Tolerance
View Similar Products (0)

ELXZ6R3ELL682ML25S Description

Short technical summary and product information.

The United Chemi-Con LXZ6.3VB682M16X25LL is an aluminum electrolytic capacitor from the LXZ series. It features a capacitance of 6800 µF with a tolerance of ±20% and is rated for a voltage of 6.3 V.



Designed for general purpose applications, this capacitor operates within a temperature range of -55°C to 105°C. It has a rated lifetime of 8000 hours at 105°C. Key electrical characteristics include a ripple current of 2.176 A at 120 Hz and 2.56 A at 100 kHz, with an impedance of 22 mOhms.



The component has a polarized design and is packaged in a radial can. Its dimensions are 16.00mm in diameter and 25.00mm in height, with a lead spacing of 7.50mm. The product status is listed as obsolete.

ELXZ6R3ELL682ML25S Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: LXZ
Canonical Name: United Chemi-Con LXZ6.3VB682M16X25LL Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

ELXZ6R3ELL682ML25S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELXZ6R3ELL682ML25S Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

ELXZ6R3ELL682ML25S Features

  • 6800µF capacitance with ±20% tolerance.
  • Rated for 6.3V DC operation.
  • 8000 hours lifetime at 105°C.
  • Operating temperature range -55°C to 105°C.
  • Radial package with 7.50mm lead spacing.

ELXZ6R3ELL682ML25S Applications

  • Ideal for general purpose power supply filtering.
  • Suitable for DC bus smoothing circuits.
  • Used in industrial control board decoupling.
  • Applied in consumer electronics power stages.

ELXZ6R3ELL682ML25S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the ELXZ6R3ELL682ML25S?

6.3 V

What is the maximum operating temperature for this capacitor?

105°C

What is the capacitance value and tolerance?

6800 µF with ±20% tolerance

How much ripple current can this component handle at 100 kHz?

2.56 A

What mounting type does this part use?

Through hole

What is the physical diameter and maximum seated height?

16.00 mm diameter and 25.00 mm height

Is this component still in active production?

No, it is marked as obsolete
