| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
503 pcs
|
503 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

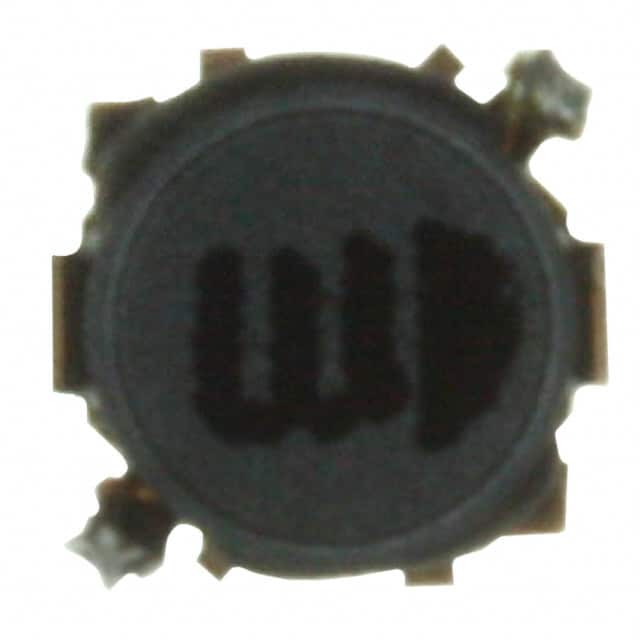

This Panasonic ELL-VFG100MC is a wirewound fixed inductor designed for surface mount applications. It features a shielded construction and provides an inductance value of 10µH with a tolerance of ±20%. The component is rated for a current of 640mA and has a DC resistance of 380mOhm. Its dimensions are 3.00mm x 3.00mm with a height of 1.20mm. This inductor is suitable for various electronic circuits requiring stable inductance and current handling capabilities.
The ELL-VFG100MC is designed for reliable performance in demanding applications. Its surface mount package allows for efficient integration into automated assembly processes. The shielded design helps minimize electromagnetic interference, making it suitable for use in sensitive electronic equipment. The wirewound construction ensures good performance characteristics for inductance and current handling.
Key electrical characteristics include a 10µH inductance and a 640mA current rating. The DC resistance is specified at 380mOhm, contributing to efficient operation. The ±20% tolerance on inductance provides a balance between precision and cost-effectiveness for general-purpose applications. The component's physical dimensions are compact, with a length and width of 3.00mm and a height of 1.20mm, facilitating space-constrained designs.
The inductance is 10µH.
The current rating is 640mA.
The DC Resistance is 380mOhm.
The tolerance is ±20%.
It is a wirewound inductor.
It is a surface mount component.
The dimensions are 3.00mm x 3.00mm with a height of 1.20mm.
