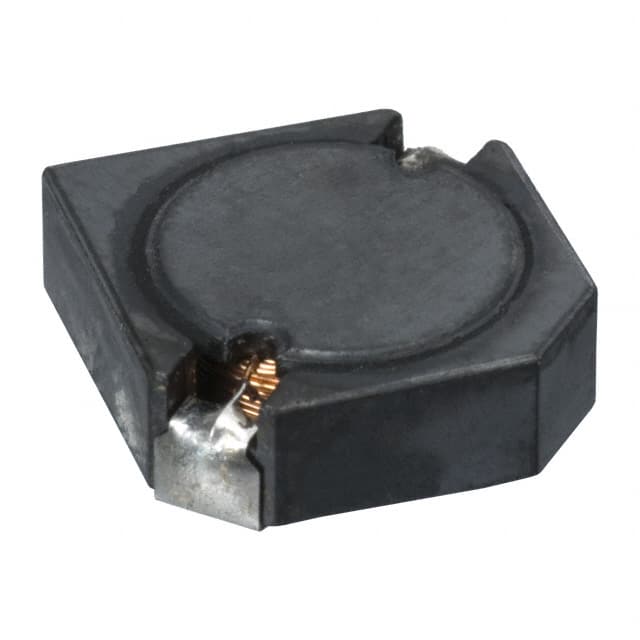

ELL-CTV2R0N Panasonic ELL-CTV2R0N is a shielded, surface mount fixed inductor with a drum core and wirewound construction. It offers 2µH inductance and a 6.3A current rating.
Mfr Part #:

ELL-CTV2R0N

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic ELL-CTV2R0N is a shielded, surface mount fixed inductor with a drum core and wirewound construction. It offers 2µH inductance and a 6.3A current rating.
✓ Total Stock: 80 pcs

ELL-CTV2R0N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-CTV2R0N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Shielding
Storage Temperature
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ELL-CTV2R0N Description

Short technical summary and product information.

The Panasonic ELL-CTV2R0N is a fixed inductor designed for surface mount applications. It features a drum core and wirewound construction, providing a shielded design for reduced electromagnetic interference.



This inductor offers an inductance value of 2 µH with a tolerance of ±30%. It is rated for a current of 6.3 A and has a low DC resistance (DCR) of 5.6 mOhm. The ferrite material contributes to its magnetic properties.



With a height of 4.50mm and dimensions of 12.00mm x 12.00mm, the ELL-CTV2R0N is suitable for various electronic circuits where space is a consideration. Its nonstandard package type requires specific handling during assembly.



This component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions.

ELL-CTV2R0N Quick Information

Product Type: Fixed Inductor
Canonical Name: Panasonic Electronic Components ELL-CTV2R0N Fixed Inductor
Subcategory: Fixed Inductor

ELL-CTV2R0N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELL-CTV2R0N Features

  • Shielded drum core wirewound inductor.
  • 2µH inductance with ±30% tolerance.
  • High current rating of 6.3A.
  • Low DC resistance of 5.6mOhm.
  • Surface mountable ferrite construction.

ELL-CTV2R0N Applications

  • Suitable for power supply filtering.
  • Used in DC-DC converter circuits.
  • Ideal for signal line chokes.
  • Applicable in RF circuits.

ELL-CTV2R0N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Panasonic ELL-CTV2R0N?

The inductance of the ELL-CTV2R0N is 2 µH.

What is the current rating for the ELL-CTV2R0N inductor?

The ELL-CTV2R0N has a current rating of 6.3 A.

What is the DC resistance (DCR) of the Panasonic ELL-CTV2R0N?

The DC resistance (DCR) is 5.6 mOhm.

What type of inductor is the ELL-CTV2R0N?

The ELL-CTV2R0N is a drum core, wirewound inductor.

How is the Panasonic ELL-CTV2R0N mounted?

The ELL-CTV2R0N is designed for surface mount.
