| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
101 pcs
|
101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

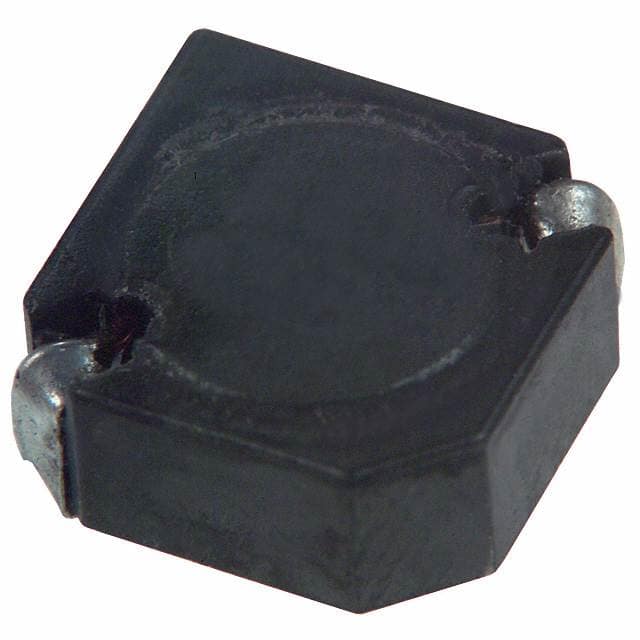

This Panasonic Electronic Components ELL-ATV101M is a fixed inductor designed for surface mount applications. It features a shielded, drum core, wirewound construction with a ferrite material.
The inductor provides an inductance value of 100 µH with a tolerance of ±20%. It is rated for a current of 1 A and has a DC resistance (DCR) of 180 mOhm. The component has dimensions of 10.00mm x 10.00mm with a height of 4.50mm.
Key electrical characteristics include its inductance, current handling capability, and low DCR. The shielded design helps minimize electromagnetic interference, making it suitable for various electronic circuits where signal integrity is important.
Its surface mount package simplifies integration into automated assembly processes. The robust construction and material properties ensure reliable performance in demanding applications.
The inductance of the ELL-ATV101M is 100 µH with a tolerance of ±20%.
The current rating for the ELL-ATV101M is 1 A.
The DC Resistance (DCR) of the ELL-ATV101M is 180 mOhm.
The ELL-ATV101M is a drum core, wirewound inductor.
Yes, the ELL-ATV101M is a shielded inductor.
The dimensions are 10.00mm (length) x 10.00mm (width) x 4.50mm (height).
The RoHS status is RoHS3 Compliant.
