| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
485 pcs
|
485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

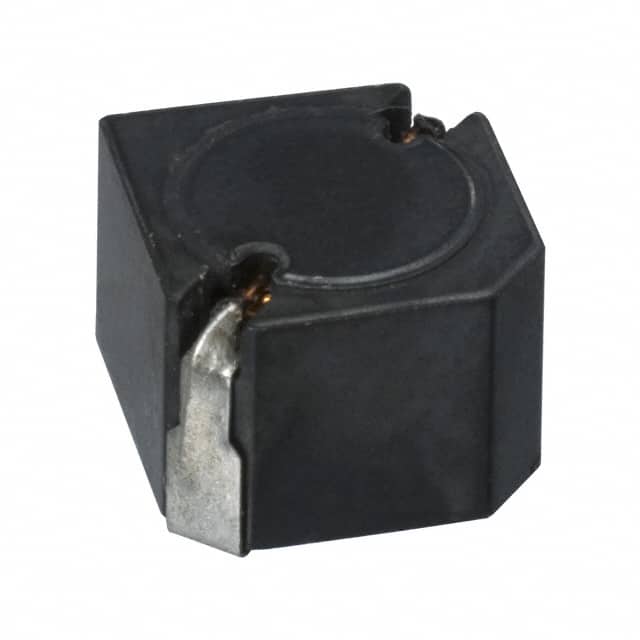

The Panasonic ELL-8UV470M is a wirewound, unshielded fixed inductor from the ELL-8UV series. It offers an inductance of 47 µH with a tolerance of ±20% and a DC resistance of 100 Ohms. This component is rated for a current of 1.25 mA and operates within a temperature range of -40°C to 105°C.
Designed for surface mounting, the inductor has dimensions of 8.00mm in length and width, and 6.50mm in height. The ferrite material construction contributes to its performance characteristics. It is suitable for various electronic applications requiring stable inductance.
This part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. It is also REACH unaffected.
The inductance of the ELL-8UV470M is 47 µH.
The DC resistance (DCR) for the ELL-8UV470M is 100 Ohm.
The current rating for the ELL-8UV470M is 1.25 mA.
The operating temperature range for the ELL-8UV470M is -40°C to 105°C.
The ELL-8UV470M is a Drum Core, Wirewound type inductor.
No, the ELL-8UV470M is unshielded.
The dimensions are 8.00mm in length, 8.00mm in width, and 6.50mm in height.
