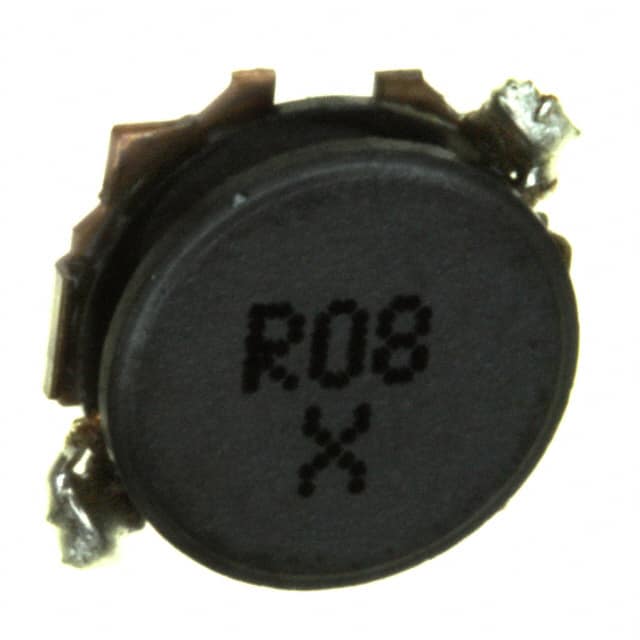

ELL-6PG680M Panasonic ELL-6PG680M is a shielded wirewound fixed inductor with 68 µH inductance, 500 mA rated current, and 700 mOhm DC resistance. It is surface mount in a nonstandard package.
Mfr Part #:

ELL-6PG680M

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic ELL-6PG680M is a shielded wirewound fixed inductor with 68 µH inductance, 500 mA rated current, and 700 mOhm DC resistance. It is surface mount in a nonstandard package.
✓ Total Stock: 100 pcs

ELL-6PG680M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-6PG680M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Medical Grade
Mounting Type
Shielding
Standard Packing Quantity
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ELL-6PG680M Description

Short technical summary and product information.

The Panasonic ELL-6PG680M is a fixed inductor from the ELL6PG series, featuring a shielded wirewound construction. It has an inductance of 68 µH with a tolerance of ±20%. The component is rated for a maximum DC current of 500 mA and has a DC resistance of 700 mOhm.



This inductor is designed for use in DC/DC converter circuits, portable devices, and other power management applications. Its shielded structure helps minimize magnetic interference. The operating temperature range is not specified in available data.



The part is supplied in a surface mount package with dimensions 6.00 mm x 6.00 mm x 2.00 mm. It is packaged in tape and reel with 1000 pieces per reel. The component is RoHS compliant.

ELL-6PG680M Quick Information

Product Type: Shielded Wirewound Inductor
Series: G
Canonical Name: Panasonic ELL-6PG680M 68 µH Shielded Wirewound Inductor
Subcategory: Shielded Wirewound Inductors

ELL-6PG680M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ELL-6PG680M Features

  • 68 µH inductance with ±20% tolerance.
  • Rated DC current of 500 mA.
  • Shielded wirewound construction minimizes EMI.
  • Surface mount package: 6.00 mm x 6.00 mm x 2.00 mm.
  • RoHS compliant.

ELL-6PG680M Applications

  • Ideal for DC/DC converter circuits in mobile phones.
  • Used in power management for portable game devices.
  • Suitable for tablet terminal power supplies.
  • Designed for digital still camera applications.

ELL-6PG680M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the ELL-6PG680M?

68 µH with ±20% tolerance.

What is the rated current?

500 mA.

What is the DC resistance?

700 mOhm.

What is the package type and size?

Surface mount nonstandard package, dimensions 6.00 mm x 6.00 mm x 2.00 mm.

Is the inductor shielded?

Yes, it is shielded.

What is the saturation current?

420 mA (estimated, not confirmed by datasheet).

Is the component RoHS compliant?

Yes, RoHS compliant.
