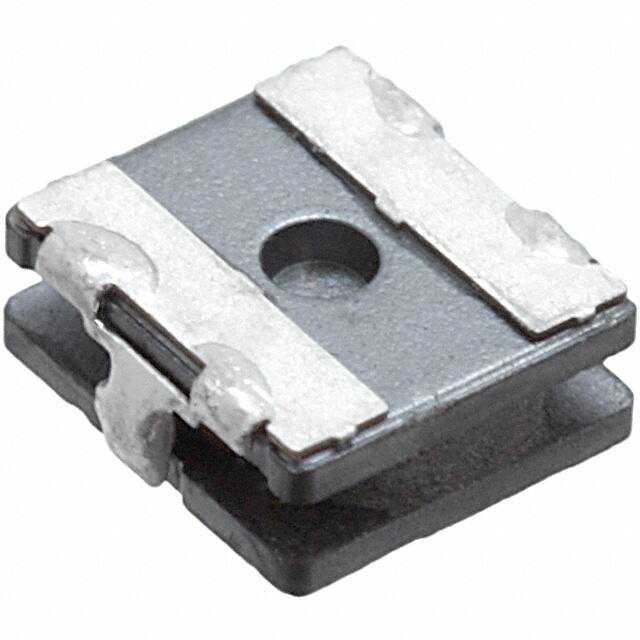

ELL-5PR2R2N The Panasonic ELL-5PR2R2N is a wirewound, shielded, surface mount fixed inductor. It offers an inductance of 2.2µH and a current rating of 2.4A.
Mfr Part #:

ELL-5PR2R2N

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ELL-5PR2R2N is a wirewound, shielded, surface mount fixed inductor. It offers an inductance of 2.2µH and a current rating of 2.4A.
✓ Total Stock: 4,000 pcs

ELL-5PR2R2N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 2011+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-5PR2R2N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
Current Saturation
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Shielding
Tolerance
Type
Width
View Similar Products (0)

ELL-5PR2R2N Description

Short technical summary and product information.

This Panasonic Electronic Components ELL-5PR2R2N is a fixed inductor designed for surface mount applications. It features a wirewound construction and is shielded for reduced electromagnetic interference. The inductor provides an inductance value of 2.2µH with a tolerance of ±30% and a current rating of 2.4A. Its DC resistance is rated at 32mOhm.



The component has a compact size with dimensions of 5.00mm x 5.00mm and a height of 2.00mm. It operates at a test frequency of 100kHz and has a saturation current of 3.2A. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.



This fixed inductor is suitable for various electronic circuits requiring stable inductance and current handling capabilities. Its surface mount design facilitates automated assembly processes.

ELL-5PR2R2N Quick Information

Product Type: Fixed Inductor
Canonical Name: Panasonic Electronic Components ELL-5PR2R2N Wirewound Shielded Surface Mount Fixed Inductor, 2.2µH, 2.4A
Subcategory: Fixed

ELL-5PR2R2N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELL-5PR2R2N Features

  • Wirewound, shielded fixed inductor.
  • Surface mountable for automated assembly.
  • 2.2µH inductance with 2.4A current rating.
  • Low 32mOhm DC resistance.
  • Compact 5.00mm x 5.00mm footprint.

ELL-5PR2R2N Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for compact electronic devices.
  • General purpose inductance applications.

ELL-5PR2R2N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the ELL-5PR2R2N?

The inductance value is 2.2 microhenries.

What is the current rating of the ELL-5PR2R2N?

The current rating is 2.4A.

What is the DC resistance of the ELL-5PR2R2N?

The DC resistance is 32 milliohms.

What is the saturation current of the ELL-5PR2R2N?

The saturation current is 3.2A.

What are the dimensions of the ELL-5PR2R2N?

The dimensions are 5.00mm by 5.00mm with a height of 2.00mm.

Is the ELL-5PR2R2N RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.
