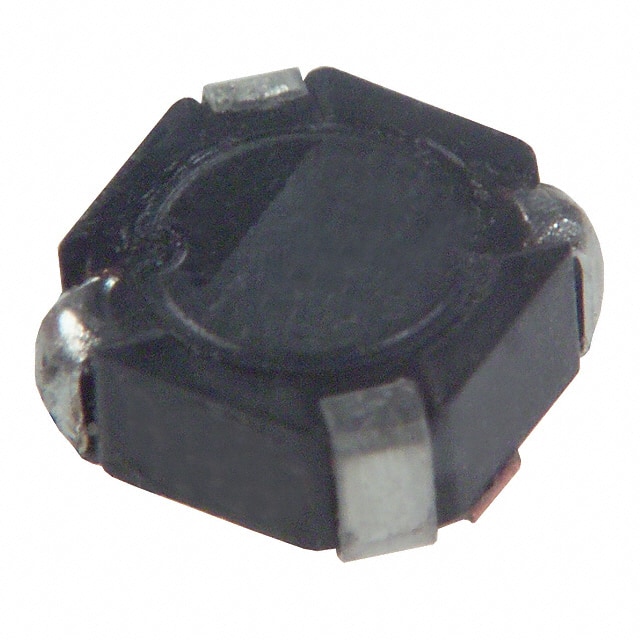

ELL-4LM3R3N The Panasonic ELL-4LM3R3N is a wirewound, shielded SMD inductor. It offers a 3.3µH inductance and a 1.1A current rating.
Mfr Part #:

ELL-4LM3R3N

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ELL-4LM3R3N is a wirewound, shielded SMD inductor. It offers a 3.3µH inductance and a 1.1A current rating.
✓ Total Stock: 2,700 pcs

ELL-4LM3R3N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,700 pcs
On Request
2700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-4LM3R3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Shielding
Storage Temperature
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ELL-4LM3R3N Description

Short technical summary and product information.

This Panasonic ELL-4LM3R3N is a wirewound, shielded surface mount inductor. It features a magnetic shielded structure, low DC resistance, and large current capability, making it shock resistant.



The inductor has an inductance value of 3.3µH and a current rating of 1.1A. The DC resistance is 62mOhm, with a tolerance of ±30%. The dimensions are 3.80mm x 3.80mm x 1.80mm.



Recommended applications include DC/DC converter circuitry for computer peripherals and cellular handsets, as well as chopper circuit decoupling chokes in DC/DC converter circuitry.

ELL-4LM3R3N Quick Information

Product Type: Fixed Inductor
Series: M
Canonical Name: Panasonic Electronic Components ELL-4LM3R3N Wirewound Shielded SMD Inductor
Subcategory: SMD Choke Coils

ELL-4LM3R3N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELL-4LM3R3N Features

  • Magnetic shielded structure for reduced interference.
  • Low DC resistance and large current capability.
  • Shock resistant construction for durability.
  • Available on tape and reel for automation.
  • Suitable for DC/DC converter circuitry.

ELL-4LM3R3N Applications

  • Used in DC/DC converter circuits.
  • Ideal for computer peripheral power.
  • Applicable to cellular handset power.
  • Chopper circuit decoupling applications.

ELL-4LM3R3N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the ELL-4LM3R3N?

The inductance of the ELL-4LM3R3N is 3.3µH.

What is the current rating for the ELL-4LM3R3N?

The current rating for the ELL-4LM3R3N is 1.1A.

What is the DC resistance (DCR) of the ELL-4LM3R3N?

The DC resistance of the ELL-4LM3R3N is 62mOhm.

What type of inductor is the ELL-4LM3R3N?

The ELL-4LM3R3N is a wirewound, shielded SMD inductor.

What are the dimensions of the ELL-4LM3R3N?

The dimensions of the ELL-4LM3R3N are 3.80mm x 3.80mm x 1.80mm.

What is the standard packing quantity for the ELL-4LM3R3N?

The standard packing quantity is 2000 pcs./Reel.
