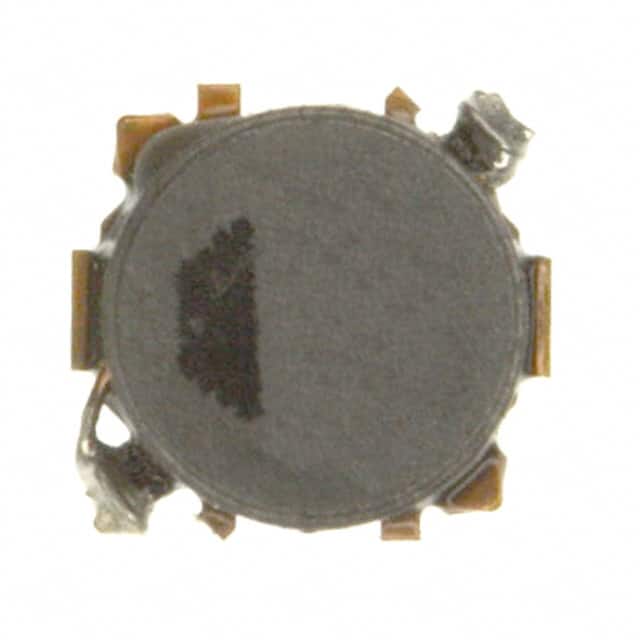

ELL-4LG1R5NA Fixed inductor from Panasonic, 1.5 µH inductance, 1.8A rated current, shielded wirewound construction in a surface mount package.
Mfr Part #:

ELL-4LG1R5NA

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Fixed inductor from Panasonic, 1.5 µH inductance, 1.8A rated current, shielded wirewound construction in a surface mount package.
✓ Total Stock: 2,950 pcs

ELL-4LG1R5NA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,950 pcs
On Request
2950 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-4LG1R5NA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Lead Style
Length
Mounting Type
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ELL-4LG1R5NA Description

Short technical summary and product information.

The Panasonic ELL-4LG1R5NA is a fixed inductor from the ELL4LG-A series, featuring a shielded wirewound construction. It offers an inductance of 1.5 µH (measured at 100 kHz) with a tolerance of ±30%. The component is rated for a maximum DC current of 1.8 A and has a saturation current of 1.7 A. Its DC resistance is 48 mΩ at 20°C.



This inductor is designed for surface mount assembly and comes in a nonstandard package with dimensions of 3.80 mm x 3.80 mm and a height of 1.80 mm. The shielded construction helps reduce electromagnetic interference, making it suitable for noise-sensitive applications.



Typical applications include DC/DC converter circuits in portable devices such as digital still cameras, tablet terminals, and cellular phones. The component is RoHS compliant and has a moisture sensitivity level of 1 (unlimited). Standard packing is 3000 pieces per reel.

ELL-4LG1R5NA Quick Information

Product Type: Fixed Inductor
Series: ELL4LG-A
Canonical Name: Fixed Inductor 1.5 µH 1.8A Shielded Wirewound SMD
Subcategory: Shielded Wirewound Inductor

ELL-4LG1R5NA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ELL-4LG1R5NA Features

  • Shielded wirewound construction reduces EMI.
  • Inductance of 1.5 µH at 100 kHz.
  • Rated current up to 1.8 A.
  • Low DC resistance of 48 mΩ.
  • Surface mount package 3.8 mm square.

ELL-4LG1R5NA Applications

  • Used in DC/DC converter circuits.
  • Ideal for portable electronic devices.
  • Suitable for noise-sensitive power supplies.
  • Common in tablet and smartphone designs.

ELL-4LG1R5NA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the ELL-4LG1R5NA?

1.5 µH at 100 kHz.

What is the inductance tolerance?

±30%.

What is the rated current?

1.8 A maximum at 20°C.

What is the saturation current?

1.7 A maximum at 20°C.

What is the DC resistance?

48 mΩ at 20°C.

Is this inductor shielded?

Yes, it is shielded.

What is the package size?

3.80 mm x 3.80 mm, height 1.80 mm, surface mount.
