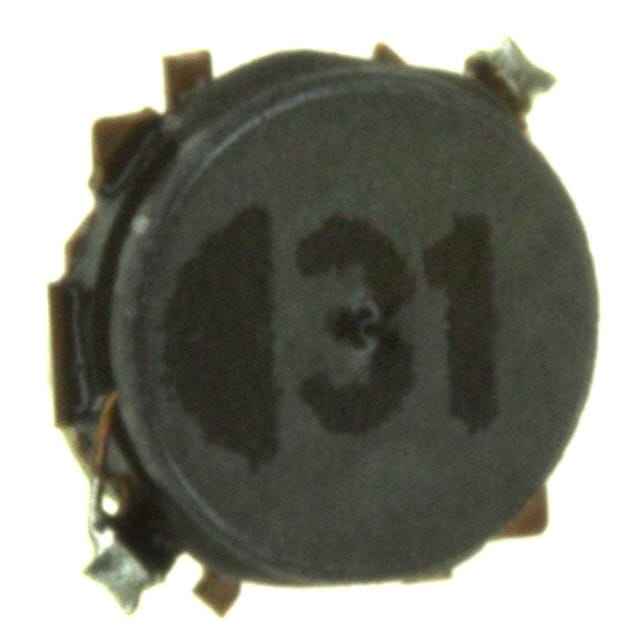

ELL-4FG220MA The Panasonic Electronic Components ELL-4FG220MA is a wirewound, shielded fixed inductor with a 22 µH inductance and a 500 mA current rating. It is designed for surface mounting.
Mfr Part #:

ELL-4FG220MA

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ELL-4FG220MA is a wirewound, shielded fixed inductor with a 22 µH inductance and a 500 mA current rating. It is designed for surface mounting.
✓ Total Stock: 100 pcs

ELL-4FG220MA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELL-4FG220MA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ELL-4FG220MA Description

Short technical summary and product information.

This Panasonic Electronic Components ELL-4FG220MA is a wirewound, shielded fixed inductor. It offers a nominal inductance of 22 µH with a tolerance of ±20% and a current rating of 500 mA. The DC resistance (DCR) is 620 mOhm, and it has a saturation current of 420 mA.



The inductor is designed for surface mounting and features a compact size with dimensions of 3.80mm x 3.80mm and a height of 1.20mm. Its shielded construction helps minimize electromagnetic interference.



This component is suitable for various electronic applications requiring stable inductance and current handling capabilities. The RoHS 3 compliant status indicates adherence to environmental regulations.

ELL-4FG220MA Quick Information

Product Type: Fixed Inductor
Series: G
Canonical Name: Panasonic Electronic Components ELL-4FG220MA Wirewound Shielded Fixed Inductor 22 µH 500 mA
Subcategory: Wirewound

ELL-4FG220MA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELL-4FG220MA Features

  • Wirewound shielded fixed inductor.
  • 22 µH inductance with ±20% tolerance.
  • Rated for 500 mA current.
  • Low 620 mOhm DC resistance.
  • Compact 3.80mm x 3.80mm surface mount package.

ELL-4FG220MA Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for EMI reduction applications.
  • Component for compact electronic devices.

ELL-4FG220MA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the ELL-4FG220MA?

The inductance of the ELL-4FG220MA is 22 µH.

What is the current rating for the ELL-4FG220MA inductor?

The ELL-4FG220MA inductor has a current rating of 500 mA.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) of the ELL-4FG220MA is 620 mOhm.

What type of mounting is required for the ELL-4FG220MA?

The ELL-4FG220MA requires surface mounting.

What are the dimensions of the ELL-4FG220MA?

The dimensions of the ELL-4FG220MA are 3.80mm x 3.80mm with a height of 1.20mm.
