| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,930 pcs
|
1930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Width |

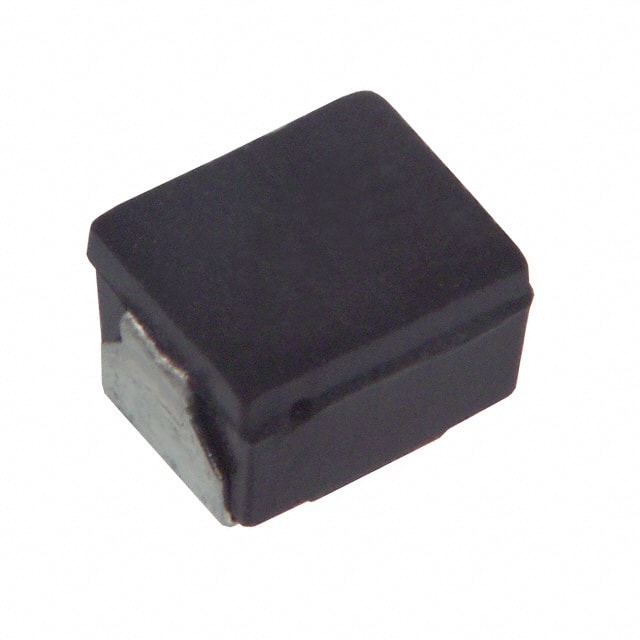

The Panasonic ELJ-SA100KF is a surface-mount fixed inductor designed for electronic circuits requiring stable inductance. It features a 10 microhenries inductance with a tolerance of ±10%, a maximum DC resistance of 1.8 Ohms, and a Q factor of 40 at 5MHz. Operating at a frequency of 30MHz, it is suitable for RF and high-frequency applications.
This inductor is shielded and packaged in a 1210 (3225 metric) size, making it suitable for compact electronic assemblies. Its mechanical dimensions are 3.20mm in length, 2.50mm in width, and 2.40mm in height. It is intended for surface-mount technology, facilitating automated assembly processes.
The component is compliant with RoHS standards and has a moisture sensitivity level of 1, indicating unlimited reflow cycles. It is used in RF filtering, impedance matching, and power supply circuits where stable inductance and high Q are required.
The inductance value is 10 microhenries.
The current rating is 18 milliamps.
The maximum DC resistance is 1.8 Ohms.
The Q factor at 5MHz is 40.
The operating frequency is 30MHz.
It comes in a 1210 (3225 metric) package.
Yes, it is RoHS3 compliant.
