| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
777 pcs
|
777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

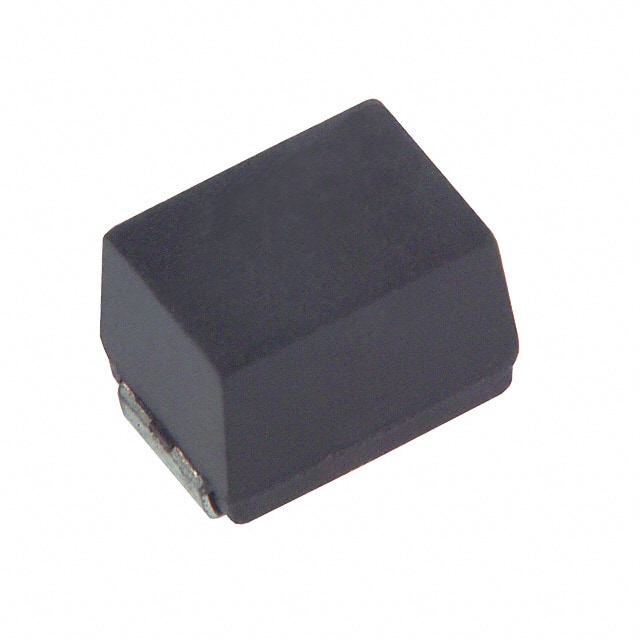

This Panasonic Electronic Components ELJ-PB120KF is a wirewound, unshielded fixed inductor designed for surface mounting. It offers a nominal inductance of 12µH with a tolerance of ±10%. The component is rated for a current of 340mA and has a maximum DC resistance of 700mOhm. Its Q factor is 10 at 2.52MHz, and it has a self-resonant frequency of 17MHz.
The inductor operates within a temperature range of -20°C to 85°C. The package size is 1812 (4532 Metric), with dimensions of 4.50mm x 3.20mm x 3.40mm. It is suitable for applications requiring stable inductance and current handling in a compact SMD form factor.
Compliance information indicates RoHS3 compliance and an MSL of 1. The REACH status is unaffected. The standard package quantity is 500 pieces.
The inductance of the ELJ-PB120KF is 12µH.
The current rating for the ELJ-PB120KF is 340mA.
The maximum DC resistance (DCR) for the ELJ-PB120KF is 700mOhm.
The ELJ-PB120KF comes in an 1812 (4532 Metric) package.
The operating temperature range for the ELJ-PB120KF is -20°C to 85°C.
