| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,757 pcs
|
1757 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Current | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Inductance Tolerance (Nominal) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| RDC | |
| Self Resonant Frequency (Minimum @ MHz min.) | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

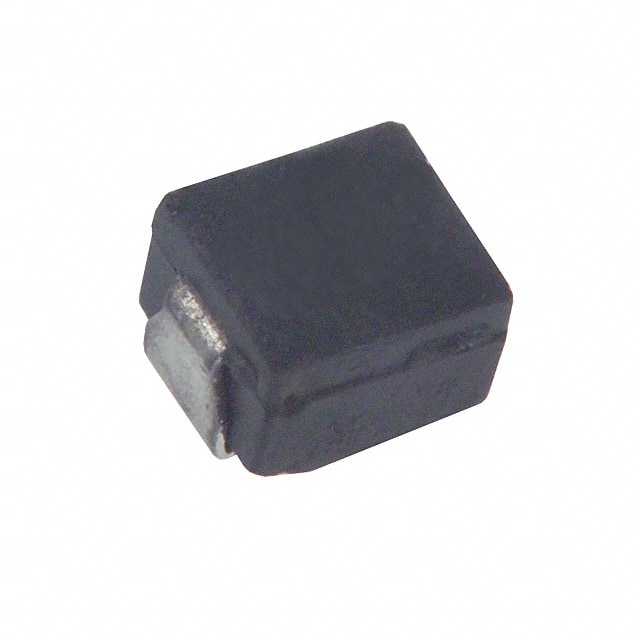

This Panasonic ELJ-FC470JF is a wirewound fixed inductor designed for general use in electronic equipment. It offers an inductance value of 47 µH with a tight tolerance of ±5%. The inductor is rated for a maximum DC current of 80 mA and has a low DC resistance of 11 Ohm Max.
Designed for surface mounting, this component comes in a compact 1008 (2520 Metric) case size, measuring 2.50mm in length, 2.00mm in width, and 1.80mm in height. It operates within a temperature range of -20°C to 85°C. The inductor is unshielded and suitable for reflow or flow soldering.
Recommended applications include AV equipment and wireless communication devices. The part number structure indicates specific features and packaging, with this particular model being part of the FC series.
The inductance of the ELJ-FC470JF is 47 µH.
The tolerance for the 47 µH inductance is ±5%.
The maximum DC current rating for the ELJ-FC470JF is 80 mA.
The DC Resistance (DCR) is a maximum of 11 Ohm.
The operating temperature range is -20°C to 85°C.
The package size is 1008 (2520 Metric).
