| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active PFC | |
| Approval Agency | |
| Communications Protocol | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection | |
| Input Voltage Range (AC) | |
| Input Voltage Range (DC) | |
| Lead Length | |
| Length | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Mode | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage Range | |
| Power (Watts) | |
| Protection Features | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

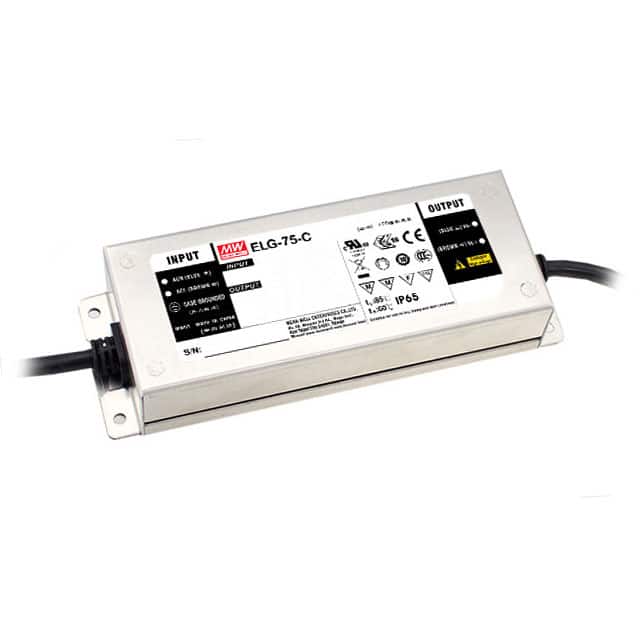

The Mean Well ELG-75-C700DA is a constant current LED driver providing 700mA output current over a voltage range of 53 to 107V DC, delivering 75W nominal power. It operates from an AC input of 100 to 305VAC or DC input of 142 to 431VDC with active PFC and typical efficiency of 90%. The driver features DALI communication protocol for dimming control and includes protections against over temperature (OTP), over voltage (OVP), and short circuit (SCP).
Enclosed in an IP67 rated metal case, the unit is suitable for outdoor and harsh environment applications. It measures 180mm x 63mm x 35.5mm and comes with 300mm wire leads for termination. The operating temperature range is -40°C to 85°C, ensuring reliable performance in extreme conditions.
Compliance includes approvals from CB, CCC, CE, cURus, EAC, ENEC, and RCM. The driver is RoHS3 compliant and REACH unaffected. It is designed for LED lighting fixtures requiring constant current regulation with digital dimming capability.
The output current is 700mA constant current.
AC input: 100 to 305VAC; DC input: 142 to 431VDC.
-40°C to 85°C.
Yes, it is RoHS3 compliant (unverified).
Over temperature protection (OTP), over voltage protection (OVP), and short circuit protection (SCP).
IP67.
Yes, it has DALI communications protocol.
