| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection (IP) Rating | |
| Input Voltage (Nominal) | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage Range | |
| Power (Watts) | |
| Protection Features | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

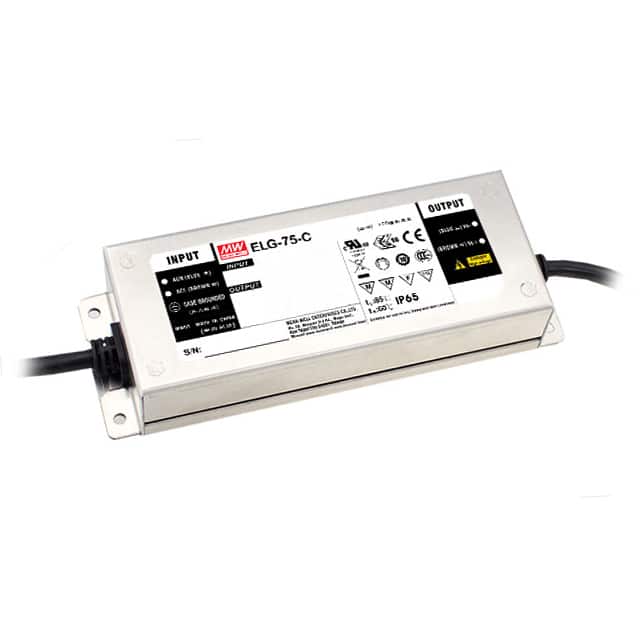

The ELG-75-C700A is a constant current LED driver from Mean Well USA, designed for reliable operation in outdoor and industrial LED lighting systems. It delivers a constant output current of 700mA over a wide output voltage range of 53V to 107V, providing up to 75W of power.
This AC-DC converter features a high efficiency of 90%, reducing energy loss and heat generation. The driver is equipped with multiple protection features including over-temperature protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP) to ensure safe operation under fault conditions.
With an IP65 ingress protection rating, the ELG-75-C700A is well-suited for outdoor installations, offering resistance to dust and water. It operates over a wide ambient temperature range from -40°C to 85°C, making it suitable for harsh environments. The driver is certified with CB, CCC, CE, cURus, and ENEC approvals, meeting international safety standards.
The mechanical design features wire leads for termination, with dimensions of 156.0mm x 63.0mm x 35.5mm. It is a single-output unit, ideal for powering constant current LED modules and luminaires.
700mA constant current.
53V to 107V.
Over-temperature protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP).
IP65.
CB, CCC, CE, cURus, and ENEC.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
