| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Approvals | |
| Current | |
| Dimming | |
| Dimming Type | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection (IP) Rating | |
| Input Voltage (AC) | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current (DC) | |
| Output Power (Watts) | |
| Output Type | |
| Output Voltage (DC) | |
| Power (Watts) | |
| Protection Features | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

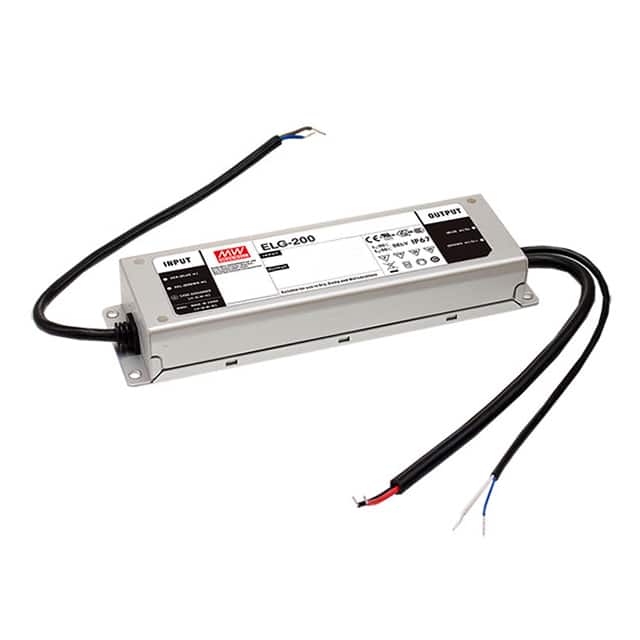

The Mean Well ELG-200-54B is a 201W AC-DC LED driver designed for high-bay, street, and outdoor lighting applications. It features both constant current and constant voltage output modes, providing 54V at 3.72A. The driver supports analog and PWM dimming for flexible brightness control.
This driver operates from a 100VAC input and achieves 93% efficiency. It includes comprehensive protection features: over-current (OCP), over-temperature (OTP), over-voltage (OVP), and short-circuit (SCP). The IP67-rated metal case with wire leads makes it suitable for damp or wet locations.
With an operating temperature range of -40°C to 90°C, the ELG-200-54B is built for reliable performance in harsh environments. It measures 200.0mm x 71.0mm x 37.5mm and carries approvals including CB, CCC, CE, cURus, and ENEC.
The output voltage is 54V DC and the output current is 3.72A.
The output power is 201W.
It supports analog and PWM dimming.
The operating temperature range is -40°C to 90°C.
Protection features include over-current (OCP), over-temperature (OTP), over-voltage (OVP), and short-circuit (SCP).
The ingress protection rating is IP67.
It has approvals: CB, CCC, CE, cURus, and ENEC.
