| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active PFC | |
| Approval Agency | |
| Communications Protocol | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| IP Rating | |
| Input Voltage | |
| Lead Length | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Ratings | |
| Standard Package Qty | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

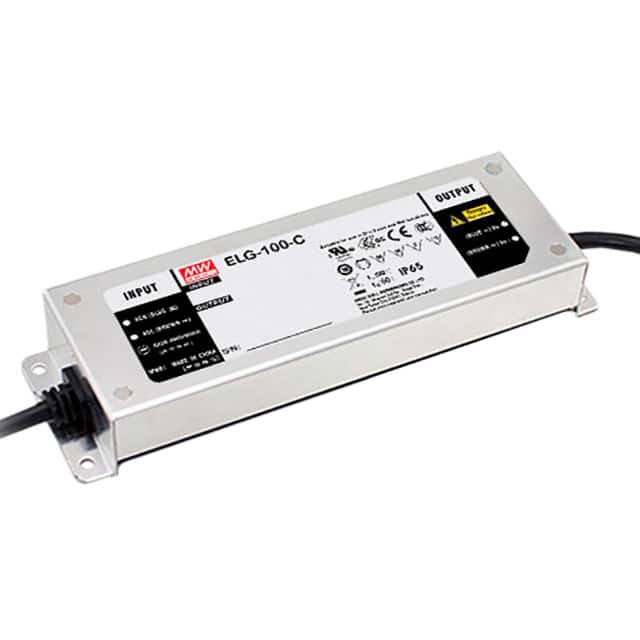

The Mean Well ELG-100-C500DA is a constant current LED driver designed for high-bay lighting, street lighting, and other outdoor LED applications. It delivers 100W output power with a constant current of 500mA over a voltage range of 100-200V DC. The driver operates from an AC input of 100-305V AC and achieves up to 91% efficiency. It features active power factor correction (PFC) and supports DALI communication protocol for dimming control. The driver is housed in a chassis-mount enclosure with IP67 rating, making it suitable for damp or wet locations. Dimensions are 175.0mm x 63.0mm x 35.5mm, with 0.3m wire leads for termination. Protection features include over-temperature protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP). Operating temperature range is -40°C to 85°C. The driver is RoHS3 compliant and REACH unaffected.
100-305V AC.
-40°C to 85°C.
Yes, RoHS3 compliant.
100W.
500mA constant current.
IP67.
Yes, it supports DALI communication protocol.
