| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active PFC | |
| Adjustable Output Current | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| IP Rating | |
| Input Voltage (Minimum/Maximum @ AC) | |
| Input Voltage (Minimum/Maximum @ DC) | |
| Input Voltage (Nominal @ AC (DB) | |
| Lead Length | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Protection | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

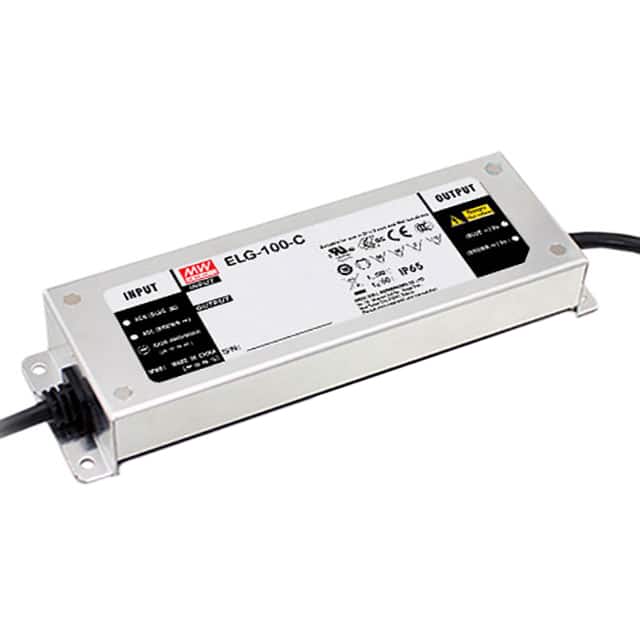

The Mean Well ELG-100-C1050A is a 100W constant current LED driver designed for a wide range of LED lighting applications. It accepts an AC input voltage of 180 to 295VAC or a DC input of 255 to 417VDC, and delivers an adjustable output current from 525 to 1050mA at a voltage of 48 to 95VDC. The driver achieves up to 90% efficiency and includes active power factor correction (PFC) for improved power quality.
This driver is housed in a compact metal enclosure measuring 199 x 63 x 35.5mm and is rated IP65 for dust and water ingress protection, making it suitable for outdoor and harsh environments. It features wire leads with a 0.3m lead length for easy installation. Protection features include over-temperature protection (OTP), over-voltage protection (OVP), and short circuit protection (SCP).
The ELG-100-C1050A operates over a wide temperature range of -40°C to 90°C (with derating) and carries multiple safety approvals including CB, CCC, CE, cURus, EAC, ENEC, and RCM. It is RoHS3 compliant and has an MSL rating of 1 (unlimited). This driver is ideal for constant current LED modules, street lighting, floodlights, and industrial high-bay lighting.
The input voltage range is 180 to 295 VAC or 255 to 417 VDC.
Output voltage is 48 to 95 VDC and output current is 525 to 1050 mA, adjustable.
The operating temperature range is -40°C to 90°C with derating.
The IP rating is IP65, suitable for outdoor and dusty/wet environments.
It includes over-temperature protection (OTP), over-voltage protection (OVP), and short circuit protection (SCP).
Yes, it is RoHS3 compliant.
It is certified with CB, CCC, CE, cURus, EAC, ENEC, and RCM.
