| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Efficiency | |
| Features | |
| Height | |
| IP Rating | |
| Input Voltage (AC) | |
| Input Voltage DC | |
| Lead Length | |
| Length | |
| Number of Outputs | |
| Operating Mode | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage (DC) | |
| Packaging Method | |
| Power (Watts) | |
| Power Factor Correction | |
| Protection Features | |
| Ratings | |
| Standard Package Quantity | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Weight (Gross) | |
| Width |

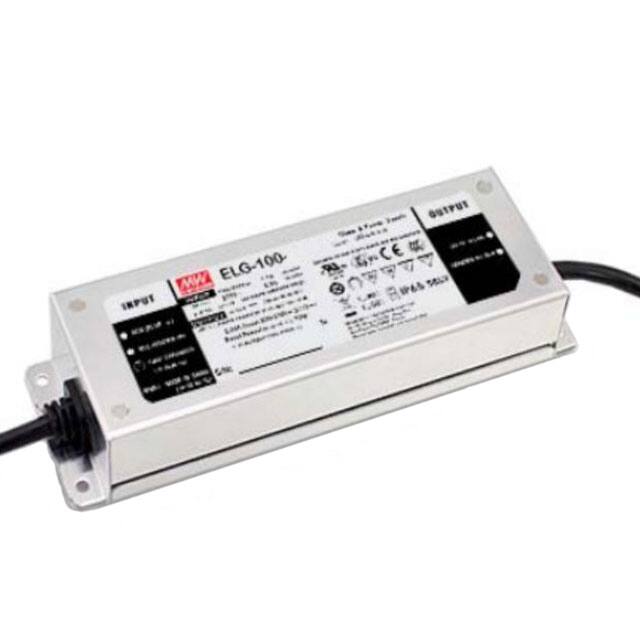

The ELG-100-24DA is a 100W LED driver from Mean Well designed for LED lighting applications. It accepts a universal AC input of 100-305 VAC or DC input of 142-431 VDC and provides a regulated 24VDC output at 4A.
Key features include DALI dimming protocol, active power factor correction (PFC), and multiple protection functions: overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short circuit (SCP). The driver operates in both constant current and constant voltage modes with an efficiency of 88%.
The driver is IP67 rated for outdoor and harsh environments, with an operating temperature range of -40°C to 90°C. It features wire leads with 0.3m length and measures 199 x 63 x 35.5 mm, weighing 826.8 g.
The ELG-100-24DA is compliant with RoHS3 and REACH, and holds approvals from CB, CCC, CE, cURus, EAC, ENEC, and RCM. It is packaged in cardboard boxes of 16 pieces.
100-305 VAC or 142-431 VDC.
Packaged in cardboard of 16 pieces.
-40°C to 90°C.
Yes, RoHS3 compliant.
24 VDC.
Yes, DALI dimming.
IP67.
