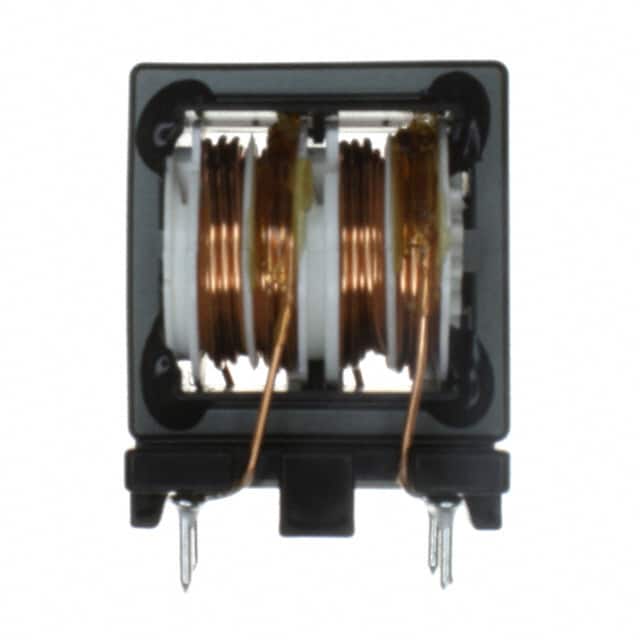

ELF-22V040A Panasonic ELF-22V040A is a 4A, 2-line common mode choke with 59mOhm typical DCR, in a through-hole vertical package.
Mfr Part #:

ELF-22V040A

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic ELF-22V040A is a 4A, 2-line common mode choke with 59mOhm typical DCR, in a through-hole vertical package.
✓ Total Stock: 2,000 pcs

ELF-22V040A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELF-22V040A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Mounting Type
Number of Lines
View Similar Products (0)

ELF-22V040A Description

Short technical summary and product information.

The Panasonic ELF-22V040A is a common mode choke designed for filtering common mode noise in power lines. It features a 4A maximum current rating and a typical DC resistance of 59mOhm. The component has 2 lines and is housed in a vertical, 4 PC pin through-hole package measuring 32.00mm x 23.00mm with a maximum height of 39.00mm. This choke is suitable for applications requiring compact size and effective noise suppression. The part is RoHS3 compliant and has an MSL of 1 (unlimited). Note: Compliance data is unverified.

ELF-22V040A Quick Information

Product Type: Common Mode Choke
Series: V
Canonical Name: Common Mode Choke, 4A, 2 Lines, Through Hole, Vertical, 4 PC Pin
Subcategory: Through Hole Common Mode Chokes

ELF-22V040A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELF-22V040A Features

  • 4A maximum current rating.
  • 2-line common mode choke.
  • 59mOhm typical DC resistance.
  • Through-hole vertical package.
  • RoHS3 compliant (unverified).

ELF-22V040A Applications

  • Used in power line noise filtering.
  • Suitable for switching power supplies.
  • Ideal for EMI suppression circuits.
  • Common mode noise reduction in electronics.

ELF-22V040A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type?

Vertical, 4 PC Pin through-hole package.

What is the current rating?

4A maximum.

What is the DC resistance?

59mOhm typical.

How many lines does it have?

2 lines.

What are the dimensions?

32.00mm L x 23.00mm W x 39.00mm H.

Is it RoHS compliant?

RoHS3 Compliant (unverified).

What is the moisture sensitivity level?

MSL 1 (unlimited).
