| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Mounting Type | |
| Number of Lines |

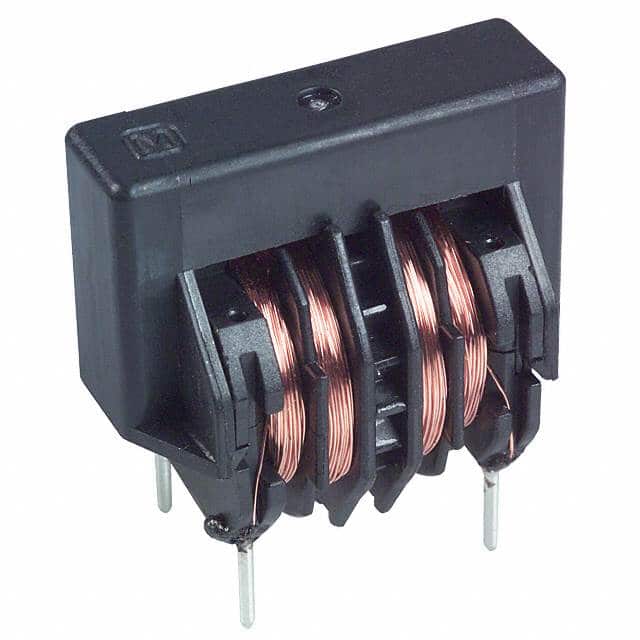

The Panasonic ELF-15N005A is a through hole common mode choke from the ELF series, designed for filtering common mode noise in electronic circuits. It features a minimum inductance of 19 mH and a maximum current rating of 500 mA, with a maximum DC resistance of 1.324 Ohm.
This component is housed in a vertical 4 PC pin package with dimensions of 15.00 mm length, 22.70 mm width, and a maximum height of 22.50 mm. The 2-line configuration makes it suitable for power line filtering applications where common mode noise suppression is required.
The ELF-15N005A is part of Panasonic's 15N series of common mode chokes, offering a balance of inductance and current handling for various filtering needs. Its through hole mounting provides robust mechanical attachment for reliable operation in demanding environments.
The minimum inductance is 19 mH.
The maximum current rating is 500 mA.
The maximum DC resistance is 1.324 Ohm.
Through hole mounting.
Vertical, 4 PC Pin.
2 lines.
