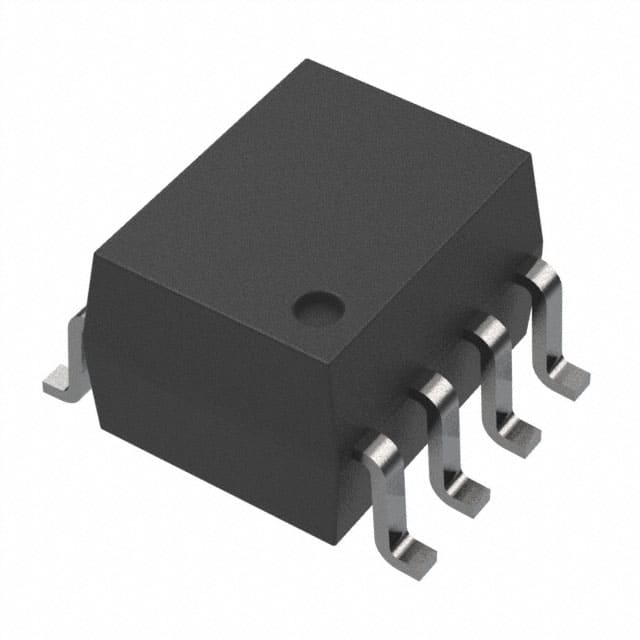

ELD207(TA)-V The Everlight Electronics ELD207(TA)-V is a 2-channel optoisolator with transistor output, providing 3750Vrms isolation. It is designed for surface mount applications in an 8-SOP package.
Mfr Part #:

ELD207(TA)-V

Available from 1 distributors
Mfr Name: Everlight Electronics
Everlight Electronics
The Everlight Electronics ELD207(TA)-V is a 2-channel optoisolator with transistor output, providing 3750Vrms isolation. It is designed for surface mount applications in an 8-SOP package.
✓ Total Stock: 7 pcs
$ Price Range: $1.24

ELD207(TA)-V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELD207(TA)-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output Type
Rise
Storage Temperature
Supplier Device Package
Tape & Reel
Turn On
Vce Saturation (Max)
Voltage
View Similar Products (0)

ELD207(TA)-V Description

Short technical summary and product information.

The Everlight Electronics ELD207(TA)-V is an optoisolator designed for signal isolation applications. It features two channels with transistor outputs, capable of providing 3750Vrms of isolation. The device operates with a DC input and has an output current rating of 60 mA.



This optoisolator is housed in an 8-SOP package and is designed for surface mounting. It operates within a temperature range of -55°C to 110°C. Key electrical characteristics include a Vce saturation of 400mV maximum and current transfer ratios of 100% minimum and 200% typical at 10mA. Turn-on and turn-off times are specified at 5µs/4µs and 1.6µs/2.2µs respectively.



The ELD207(TA)-V is suitable for applications requiring reliable electrical isolation between circuits. Its surface mount capability and compact 8-SOP package make it adaptable for various PCB designs.

ELD207(TA)-V Quick Information

Product Type: Optoisolator
Canonical Name: Everlight Electronics ELD207(TA)-V Optoisolator
Subcategory: Transistor Output

ELD207(TA)-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELD207(TA)-V Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

ELD207(TA)-V Features

  • 2-channel optoisolator with transistor output.
  • Provides 3750Vrms of isolation.
  • Surface mount 8-SOP package.
  • Operates from -55°C to 110°C.
  • Fast switching times for signal integrity.

ELD207(TA)-V Applications

  • Used for isolating digital control signals.
  • Suitable for power supply feedback loops.
  • Applicable in industrial control systems.
  • Ideal for noise reduction in sensitive circuits.

ELD207(TA)-V FAQs

4 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the ELD207(TA)-V optoisolator?

The ELD207(TA)-V optoisolator provides 3750Vrms of isolation.

How many channels does the ELD207(TA)-V optoisolator have?

The ELD207(TA)-V optoisolator has 2 channels.

What is the operating temperature range for the ELD207(TA)-V?

The operating temperature range for the ELD207(TA)-V is -55°C to 110°C.

What package type is the ELD207(TA)-V available in?

The ELD207(TA)-V is available in an 8-SOP package and is designed for surface mounting.
