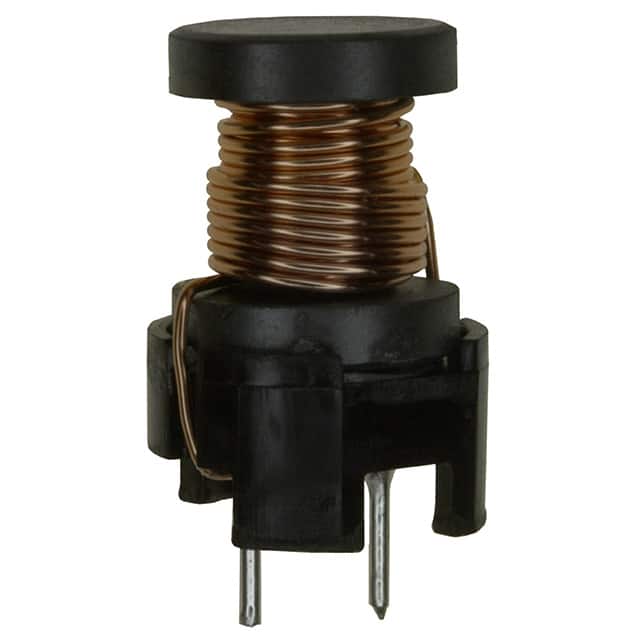

ELC-18B270L The Panasonic Electronic Components ELC-18B270L is a wirewound drum core fixed inductor with a 27µH inductance and a 4.8A current rating. It features through-hole mounting.
Mfr Part #:

ELC-18B270L

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ELC-18B270L is a wirewound drum core fixed inductor with a 27µH inductance and a 4.8A current rating. It features through-hole mounting.
✓ Total Stock: 500 pcs

ELC-18B270L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ELC-18B270L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Diameter
Height
Inductance
Material
Mounting Type
Shielding
Storage Temperature
Tape & Reel
Tolerance
Type
View Similar Products (0)

ELC-18B270L Description

Short technical summary and product information.

The Panasonic Electronic Components ELC-18B270L is a fixed inductor designed for various electronic applications. It features a wirewound drum core construction with a ferrite material, providing a stable inductance of 27 µH with a tolerance of ±10%. This component is rated for a current of 4.8 A and has a low DC resistance of 28 mOhm.



The inductor is designed for through-hole mounting and comes in a radial, vertical cylinder package. Its dimensions include a height of 27.00mm and a diameter of 20.00mm. The unshielded design makes it suitable for applications where electromagnetic interference is managed externally or is less critical.



This component is compliant with RoHS3 standards and has an MSL rating of 1. Its REACH status is unaffected. The ELC-18B270L is a reliable choice for power supply filtering, signal processing, and other inductive applications requiring stable performance.

ELC-18B270L Quick Information

Product Type: Fixed Inductor
Canonical Name: ELC-18B270L Wirewound Drum Core Inductor
Subcategory: Wirewound Inductor

ELC-18B270L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ELC-18B270L Features

  • Wirewound drum core ferrite inductor.
  • 27µH inductance with ±10% tolerance.
  • Rated for 4.8A current.
  • Low 28mOhm DC resistance.
  • Through-hole mounting radial package.

ELC-18B270L Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for general purpose inductance needs.
  • Applicable in DC-DC converters.

ELC-18B270L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the ELC-18B270L?

The inductance of the ELC-18B270L is 27 µH.

What is the current rating for the ELC-18B270L?

The current rating for the ELC-18B270L is 4.8 A.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) of the ELC-18B270L is 28 mOhm.

What type of construction does the ELC-18B270L have?

The ELC-18B270L features a wirewound drum core construction.

How is the ELC-18B270L mounted?

The ELC-18B270L is designed for through-hole mounting.
