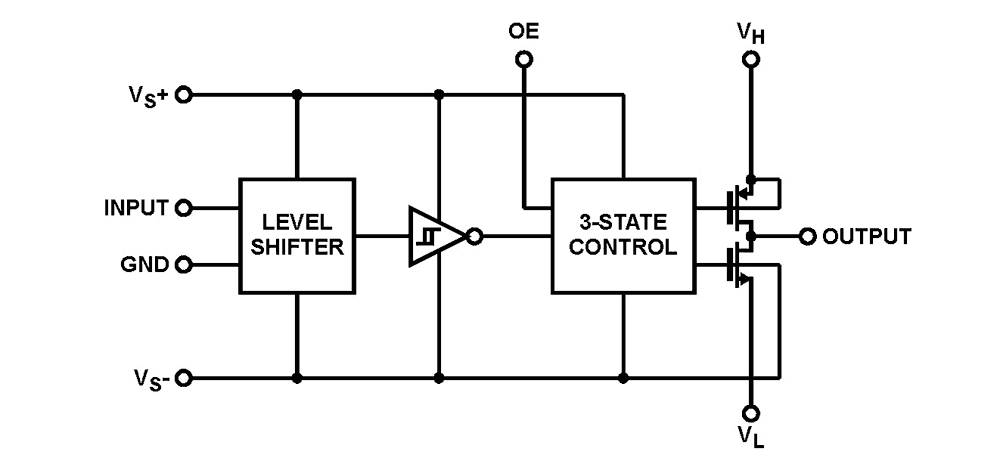

EL7457CLZ The EL7457CLZ from ISL Products International is a Gate Driver IC. It features an operating temperature range of -40°C to 85°C and supports a supply voltage from 4.5V to 18V.
Mfr Part #:

EL7457CLZ

Available from 1 distributors
Mfr Name: ISL Products International
ISL Products International
The EL7457CLZ from ISL Products International is a Gate Driver IC. It features an operating temperature range of -40°C to 85°C and supports a supply voltage from 4.5V to 18V.
✓ Total Stock: 440 pcs

EL7457CLZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
440 pcs
On Request
440 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EL7457CLZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Gate Type
Input Type
Mounting Type
Number of Drivers
Operating Temperature
Package / Case
SVHC Present
Supplier Device Package
Voltage Supply
View Similar Products (0)

EL7457CLZ Description

Short technical summary and product information.

The EL7457CLZ is a Gate Driver integrated circuit manufactured by ISL Products International. This component is designed for high-side or low-side driven configurations and supports N-Channel and P-Channel MOSFET gate types.



Key electrical specifications include an operating voltage range of 4.5V to 18V and logic voltage levels of 0.8V for VIL and 2V for VIH. The device offers independent channel control and can deliver a peak output current of 2A for both source and sink. Its typical rise and fall times are 13.5ns and 13ns, respectively.



The EL7457CLZ operates within a temperature range of -40°C to 85°C. It is supplied in a surface-mount 16-QFN (4x4) package, specifically a 16-VQFN exposed pad, and is available on tape and reel.



This gate driver is suitable for applications requiring efficient control of MOSFETs in power management systems.

EL7457CLZ Quick Information

Product Type: Gate Driver
Canonical Name: EL7457CLZ Gate Driver
Subcategory: Power Management (PMIC)

EL7457CLZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

EL7457CLZ Features

  • Operates from 4.5V to 18V supply voltage.
  • Provides 2A peak output current.
  • Features fast 13.5ns rise time.
  • Surface mount 16-QFN package.
  • Wide -40°C to 85°C operating temperature.

EL7457CLZ Applications

  • Ideal for power management circuits.
  • Suitable for high-side driving.
  • Used for low-side MOSFET control.
  • Efficient N-channel MOSFET driving.
  • Effective P-channel MOSFET driving.

EL7457CLZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the EL7457CLZ?

-40°C to 85°C.

What is the supply voltage range for the EL7457CLZ?

4.5V to 18V.

How many channels does the EL7457CLZ have?

4 independent channels.

What is the peak output current of the EL7457CLZ?

2A source and 2A sink.

What package is the EL7457CLZ available in?

16-VQFN Exposed Pad (16-QFN 4x4mm).

What types of MOSFETs can the EL7457CLZ drive?

N-channel and P-channel MOSFETs.

What are the rise and fall times of the EL7457CLZ?

13.5ns rise and 13ns fall (typical).
