| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
227 pcs
|
227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Style | |
| Number of Drivers | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Power Dissipation | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel | |
| Type |

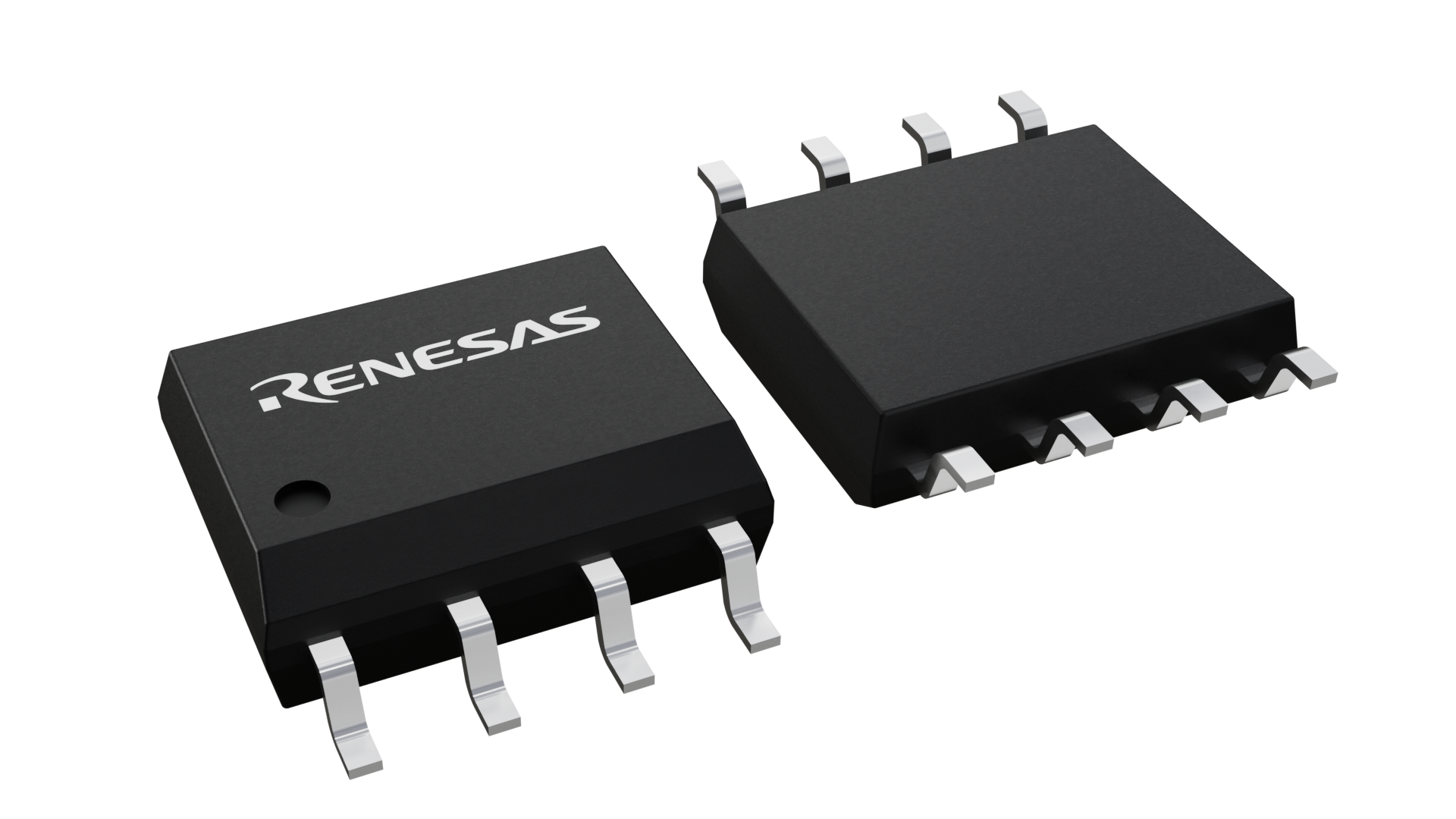

The EL7202CN is a gate driver IC manufactured by SIL, designed for driving MOSFETs and other power switches. This component features two drivers, capable of delivering up to 2A of output current. It operates with a supply voltage ranging from 4.5V to 15V, making it suitable for various power applications.
The device has a fast switching capability with a rise time of 10 ns and a fall time of 13 ns. It is housed in a compact SOIC-8 package, designed for surface mount technology (SMT). The operating temperature range is from -40°C to +85°C, ensuring reliable performance in diverse environmental conditions.
With a power dissipation of 570 mW and an operating supply current of 2.5 mA, the EL7202CN is an efficient choice for power control circuits. Its low-side driving capability and robust specifications make it a versatile component for embedded systems and power supply designs.
The EL7202CN operates from -40°C to +85°C.
The EL7202CN is available in an SOIC-8 package.
The supply voltage range is 4.5V to 15V.
The EL7202CN has two drivers.
The output current is 2A.
Rise time is 10 ns and fall time is 13 ns.
The power dissipation is 570 mW.
