| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Gate Type | |
| Input Type | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Programmable | |
| Supplier Device Package | |
| Voltage Supply |

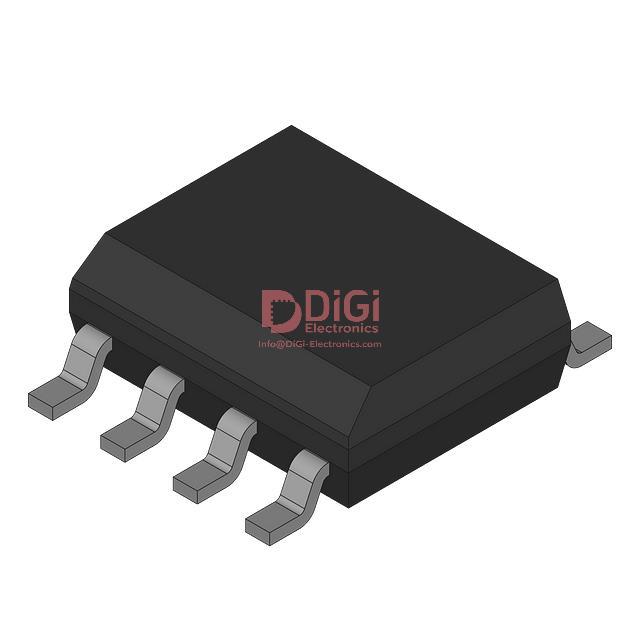

The EL7104CS from Elantec Semiconductor Inc is a single-channel, low-side gate driver IC designed for driving MOSFETs. It features a non-inverting input and supports both N-Channel and P-Channel MOSFETs.
This gate driver operates with a wide supply voltage range of 4.5V to 16V. It can deliver a peak output current of 4A for both source and sink operations. The logic voltage levels for VIH and VIL are 2.4V and 0.8V, respectively. Typical rise and fall times are specified at 7.5ns and 10ns.
The EL7104CS is housed in an 8-SOIC surface-mount package. It operates at a maximum junction temperature of 125°C. This component is suitable for various power management applications requiring efficient MOSFET driving.
Key specifications include a single driver channel, low-side configuration, and a non-inverting input. The device is designed for reliable performance within its specified operating conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EL7104CS operates from a supply voltage of 4.5V to 16V.
The EL7104CS provides 4A peak output current for both source and sink.
The EL7104CS is available in an 8-SOIC surface-mount package.
The EL7104CS has a maximum junction operating temperature of 125°C.
The EL7104CS can drive both N-channel and P-channel MOSFETs.
The EL7104CS has a non-inverting input type.
