| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package | |
| Voltage |
The Intersil EL5133IW-T7A is a single-channel voltage feedback amplifier designed for high-speed applications. It offers a significant gain bandwidth product of 3GHz and a rapid slew rate of 1000V/µs, making it suitable for demanding signal processing tasks.
This amplifier operates across a wide voltage range, supporting single supplies from 5V to 12V and dual supplies from ±2.5V to ±6V. The input bias current is a low 12µA, with an input offset voltage of 500µV. The device consumes 11mA of supply current and can deliver up to 140mA of output current per channel.

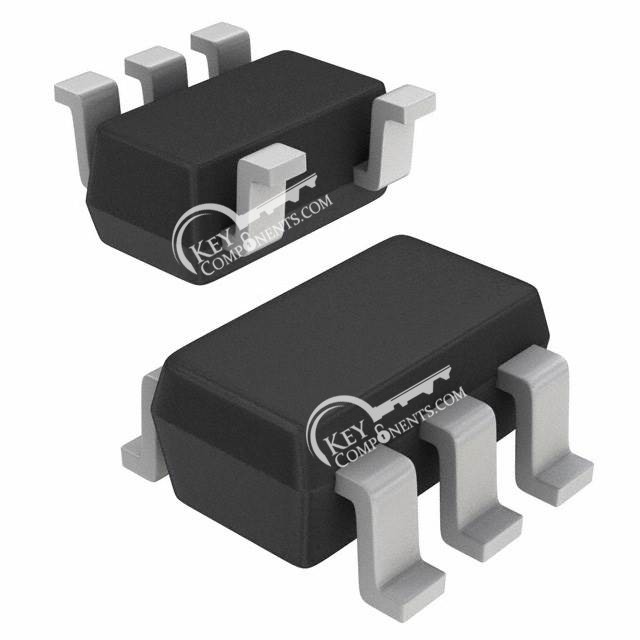

Designed for surface mounting, the EL5133IW-T7A comes in a compact SC-74A, SOT-753 package, specifically the SOT-23-5 footprint. It operates reliably within an extended temperature range of -40°C to 85°C.
Key electrical characteristics include a -3dB bandwidth of 670MHz. The part is marked as obsolete, indicating it may be nearing end-of-life.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gain bandwidth product of the EL5133IW-T7A is 3GHz.
The slew rate for the EL5133IW-T7A is 1000V/µs.
The EL5133IW-T7A supports single supply voltages from 5V to 12V and dual supply voltages from ±2.5V to ±6V.
The operating temperature range for the EL5133IW-T7A is -40°C to 85°C.
The EL5133IW-T7A is supplied in a SOT-23-5 package, with the case code SC-74A, SOT-753.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
