| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Reverse Voltage | |
| Static dV | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Zero Crossing Circuit |

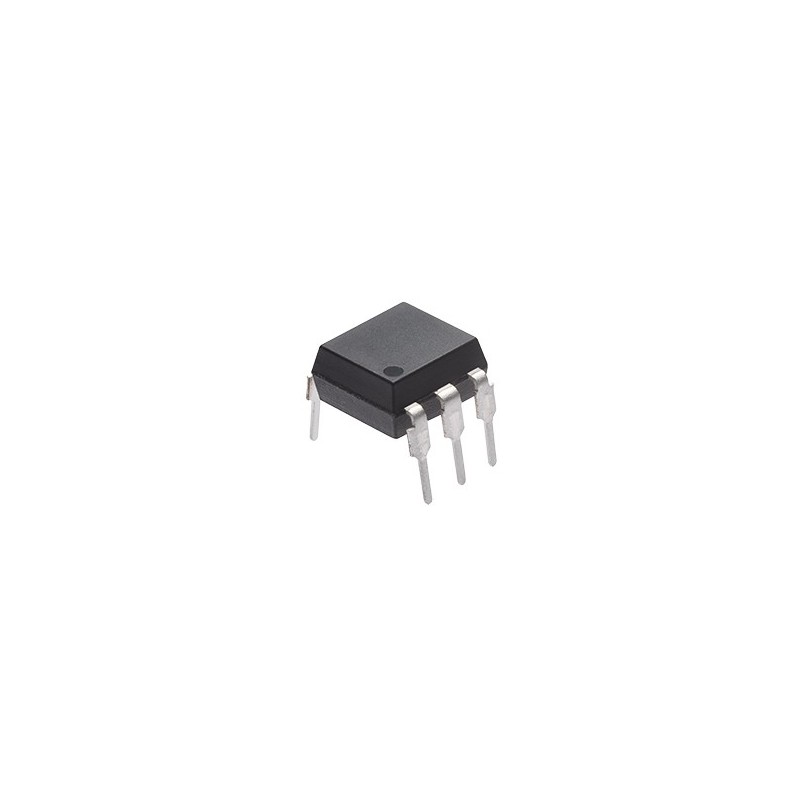

The Everlight Electronics EL3061 is a zero-crossing Triac driver photocoupler housed in a 6-DIP package. It is designed for interfacing logic systems with AC powered equipment operating from 110 to 380 VAC lines. Key electrical specifications include a 600V peak breakdown voltage, 100mA on-state RMS current, and 5000Vrms isolation voltage.
This optocoupler features a zero voltage crossing circuit, making it suitable for applications such as solid-state relays, industrial controls, motors, solenoids, and consumer appliances. The device operates within a temperature range of -55°C to 100°C and is mounted via a through-hole configuration.
Compliance information indicates RoHS3 compliance and an MSL rating of 1. The EL3061 series is approved by CSA, DEMKO, FIMKO, NEMKO, SEMKO, and UL.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak breakdown voltage for the EL3061 is 600V.
The isolation voltage is 5000Vrms.
The operating temperature range is -55°C to 100°C.
The EL3061 provides a Triac output.
Yes, the EL3061 features a zero crossing circuit.
The EL3061 is supplied in a 6-DIP package.
