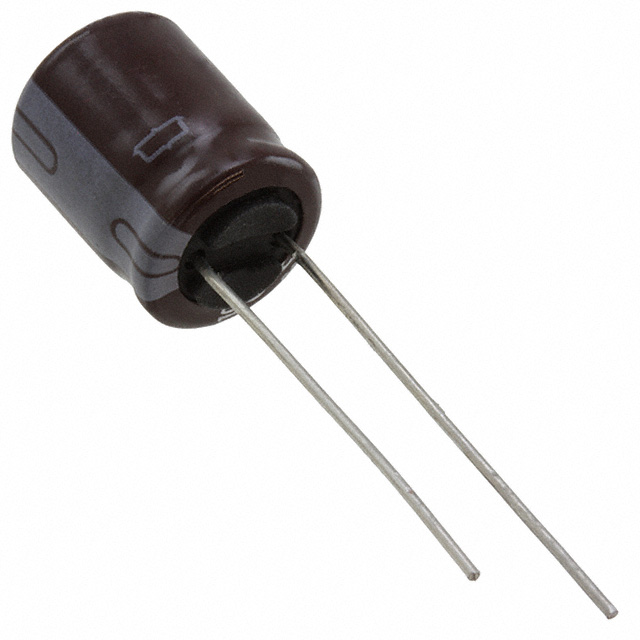

EKMG160ELL471MHB5D The United Chemi-Con EKMQ160ELL471MHB5D is an aluminum electrolytic capacitor. It features a capacitance of 470 µF and a rated voltage of 16V.
Mfr Part #:

EKMG160ELL471MHB5D

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con EKMQ160ELL471MHB5D is an aluminum electrolytic capacitor. It features a capacitance of 470 µF and a rated voltage of 16V.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.99

EKMG160ELL471MHB5D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EKMG160ELL471MHB5D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Tolerance
View Similar Products (0)

EKMG160ELL471MHB5D Description

Short technical summary and product information.

This United Chemi-Con EKMQ160ELL471MHB5D is an aluminum electrolytic capacitor designed for general-purpose applications. It offers a capacitance of 470 µF with a tolerance of ±20% and a rated voltage of 16V.



The capacitor operates within a temperature range of -55°C to 105°C and has a rated lifetime of 1000 hours at 105°C. Its dimensions are 8.00mm in diameter with a seated height of 13.00mm, and it features a lead spacing of 3.50mm.



This component is suitable for through-hole mounting and comes in a radial package. It also provides ripple current ratings of 315 mA at 120 Hz and 472.5 mA at 100 kHz.

EKMG160ELL471MHB5D Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: KMQ
Canonical Name: United Chemi-Con EKMQ Series 470 µF 16V Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitor

EKMG160ELL471MHB5D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EKMG160ELL471MHB5D Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

EKMG160ELL471MHB5D Features

  • Capacitance of 470 µF.
  • Rated for 16V DC operation.
  • Operating temperature range -55°C to 105°C.
  • Through-hole mounting radial package.
  • Lifetime of 1000 hours at 105°C.

EKMG160ELL471MHB5D Applications

  • Suitable for general purpose applications.
  • Ideal for filtering and smoothing circuits.
  • Used in power supply applications.
  • Component for general electronic designs.

EKMG160ELL471MHB5D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the EKMG160ELL471MHB5D?

470 µF with ±20% tolerance.

What is the rated voltage?

16 V DC.

What is the operating temperature range?

-55°C to 105°C.

What is the package type?

Radial, through-hole mounting.

What is the ripple current rating?

315 mA at 120 Hz and 472.5 mA at 100 kHz.

What is the lifetime rating?

1000 hours at 105°C.

What are the dimensions?

8.00 mm diameter and 13.00 mm seated height.
