| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

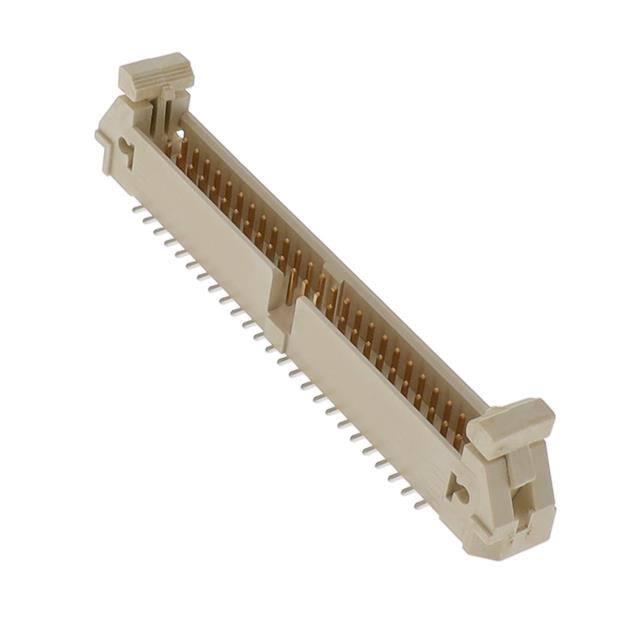

The EJH-125-02-F-D-SM-LC is a rectangular connector header from Samtec Inc., designed for board-to-cable/wire connections. It features a 50-position, 2-row configuration with a standard 2.54mm pitch. The header is shrouded with four walls and includes latch lock/eject hooks for secure mating. The contacts are male pins made of phosphor bronze with a tin finish (3.00µin). The insulation is liquid crystal polymer (LCP) in natural color. It is surface mount (SMD) with solder termination. The insulation height is 12.70mm. The connector is rated for 3A current and operates from -55°C to 125°C. Additional features include board lock and keying slot for alignment. The product is RoHS3 compliant and REACH unaffected. It is suitable for applications requiring reliable connections in harsh environments. The square contact shape and tin finish ensure good solderability and corrosion resistance. The connector is fully loaded with all positions. The surface mount design allows for automated assembly, and the LCP insulation offers high temperature resistance.
50 positions.
2.54mm (0.100").
3A per contact.
Surface mount (SMD).
-55°C to 125°C.
Tin (3.00µin).
Yes, latch lock/eject hooks.
