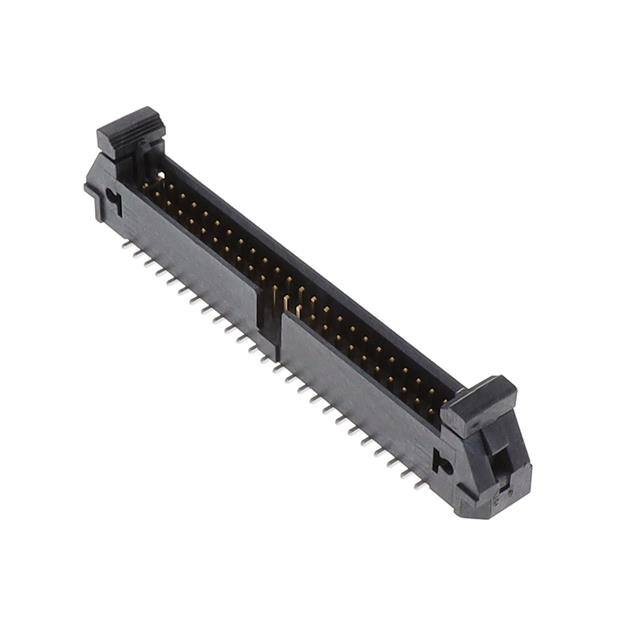

The Samtec EJH-125-01-F-D-SM is a 50-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, with male square pin contacts made of phosphor bronze and finished with 3.00µin (0.076µm) of tin. The mating contact length is 5.72mm.
The connector is housed in a black liquid crystal polymer (LCP) insulator with a height of 12.70mm. It features a 4-wall shrouded design with latch lock/eject hooks for secure mating and a keying slot for polarization. This header is surface mount (SMT) terminated with solder.
Rated for 3A per contact, the EJH-125-01-F-D-SM operates over a temperature range of -55°C to 125°C. It is suitable for applications requiring a robust, polarized connection between a PCB and a cable assembly.
It has 50 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 3A per contact.
It is surface mount (SMT) with solder termination.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 3.00µin (0.076µm).
Yes, it features latch lock/eject hooks for secure mating.
